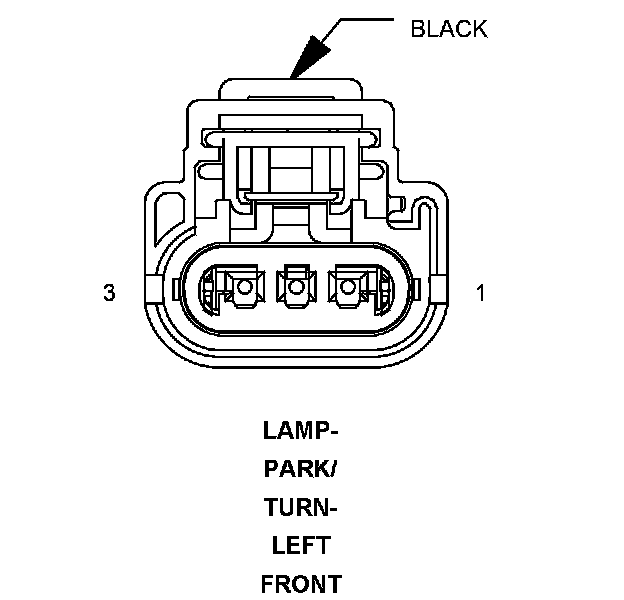

Lamp-Park/Turn-Left Front

Component ID: 152
Component : LAMP-PARK/TURN-LEFT FRONT

Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color : BLACK
# of pins : 3




Pin Circuit Description
1 Z377 20BK/BR GROUND
2 L77 20WT/VT LEFT FRONT PARK LAMP DRIVER
3 L61 18LG/WT LEFT FRONT TURN SIGNAL LAMP DRIVER

Component Location - 6

3.8L:
