Lamp-Tail-Right

Component ID: 160
Component : LAMP-TAIL-RIGHT

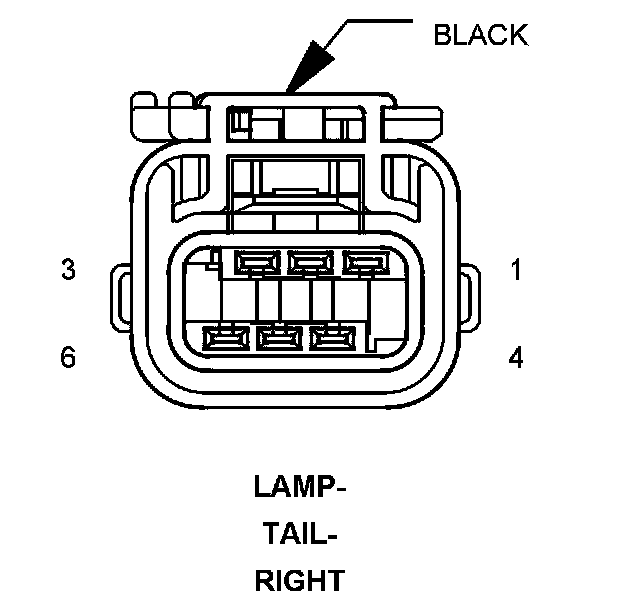

Connector:
Name : LAMP-TAIL-RIGHT
Color : BLACK
# of pins : 6




Pin Circuit Description
1 L72 20WT/OR RIGHT TAIL LAMP DRIVER
2 L1 18WT/LG BACKUP LAMP DRIVER
3 L72 20WT/OR RIGHT TAIL LAMP DRIVER
4 Z362 18BK/BR GROUND
5 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
6 L62 18WT/DB RIGHT REAR TURN SIGNAL LAMP DRIVER

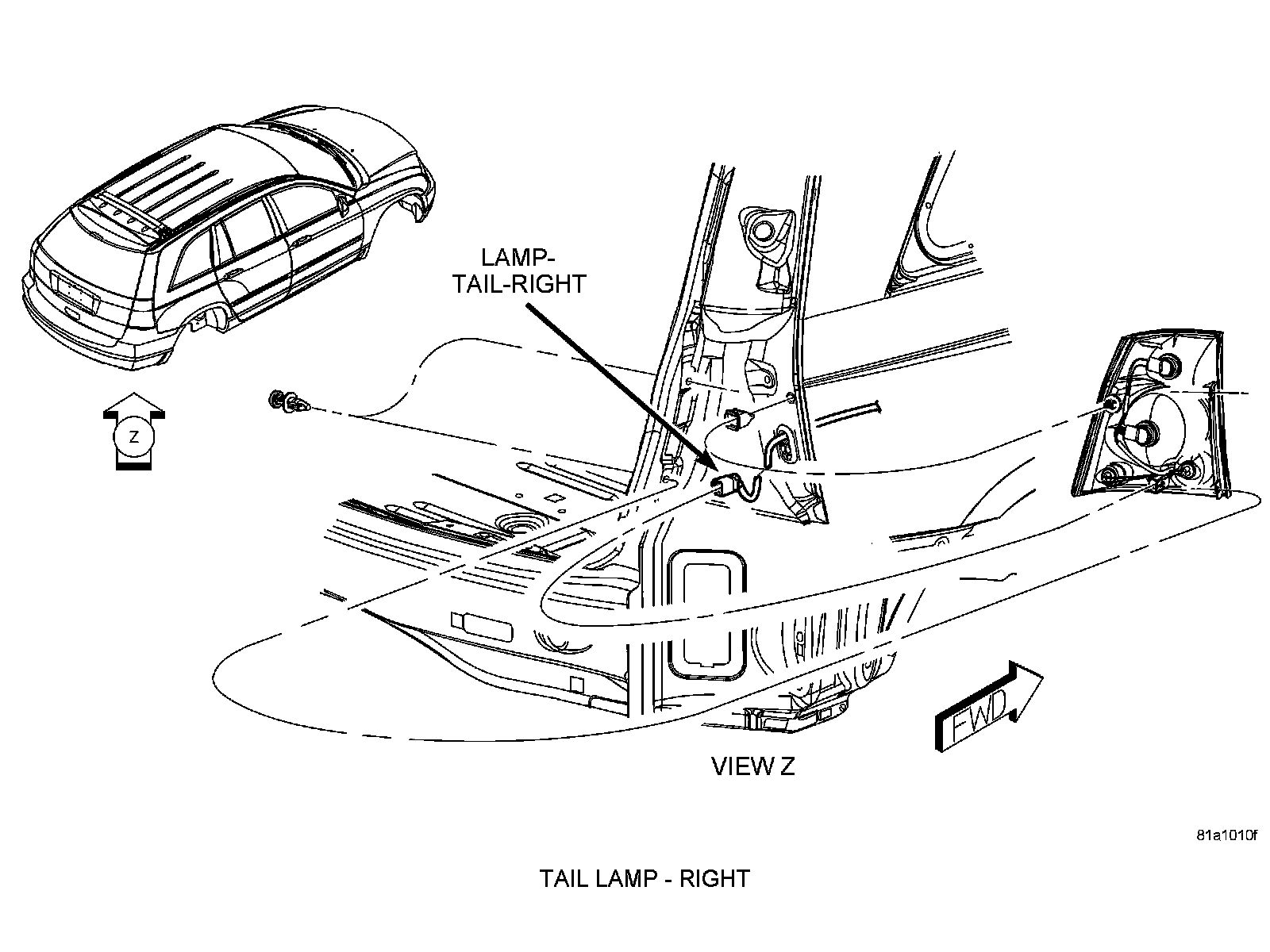

Component Location - 31

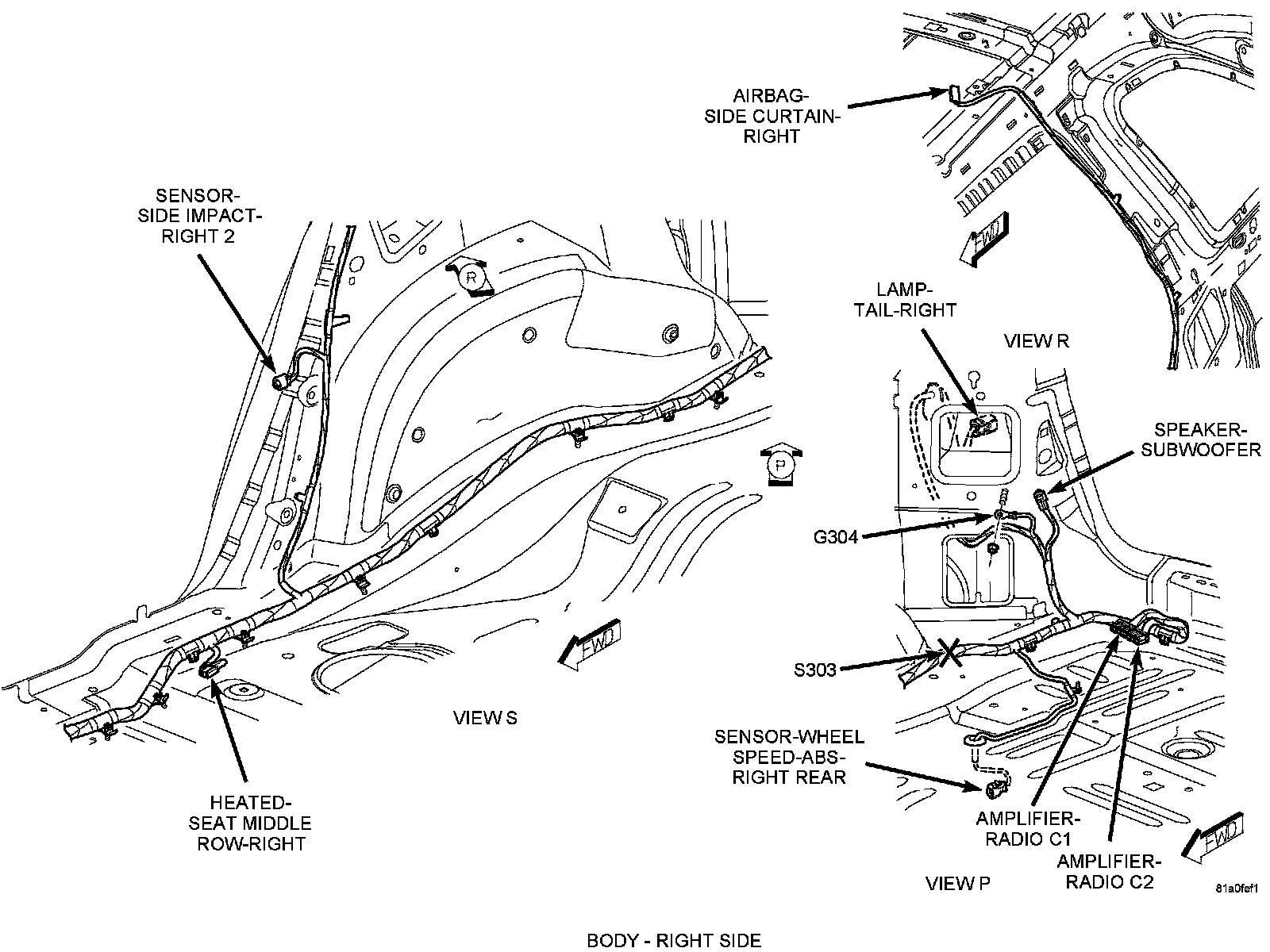

Component Location - 34




Component Location - 46
