Lamp-Tail-Left

Component ID: 159
Component : LAMP-TAIL-LEFT

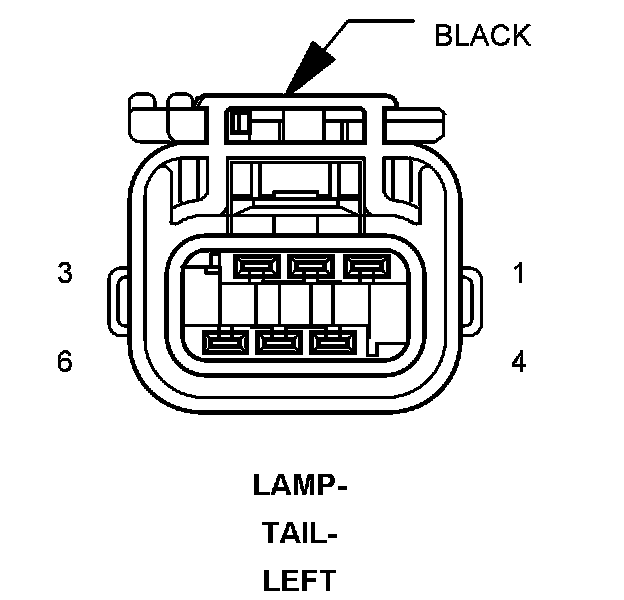

Connector:
Name : LAMP-TAIL-LEFT
Color : BLACK
# of pins : 6




Pin Circuit Description
1 L71 20WT/GY LEFT TAIL LAMP DRIVER
2 L1 18WT/LG BACKUP LAMP DRIVER
3 L71 20WT/GY LEFT TAIL LAMP DRIVER
4 Z363 18BK/DG GROUND
5 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
6 L63 18DG/WT LEFT REAR TURN SIGNAL LAMP DRIVER

Component Location - 28
