Exterior Lamps







EXTERIOR LAMPS

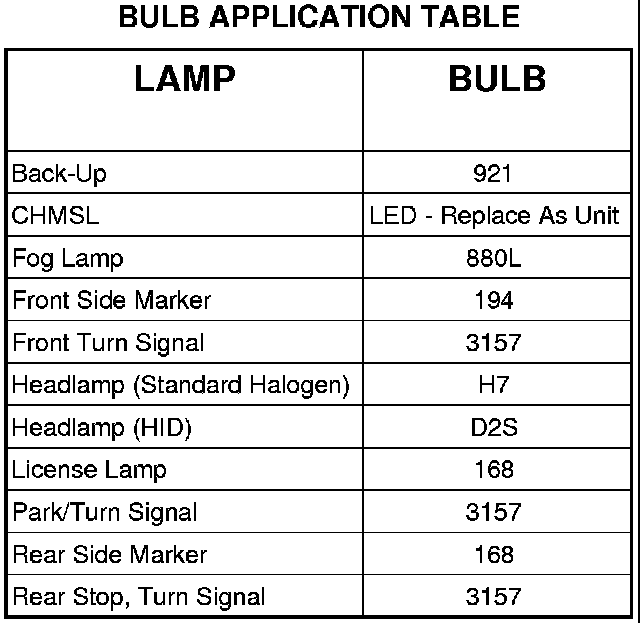

CAUTION: Do not use bulbs that have a higher candle power than the bulb listed in the chart below. Damage to lamp can result.
Do not touch halogen/High Intensity Discharge (HID) bulbs with fingers or other oily surfaces. Bulb life will be reduced.
