Reading Lamp - Installation

INSTALLATION

FRONT READING LAMP

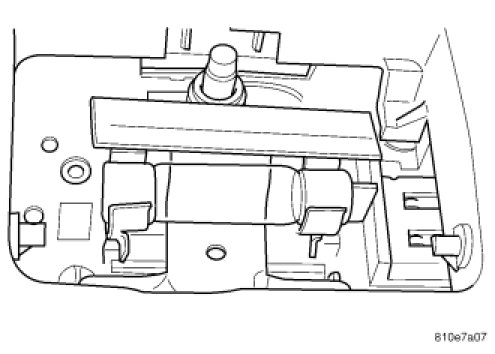

1. Place lamp over retaining clips in overhead and firmly snap into place.

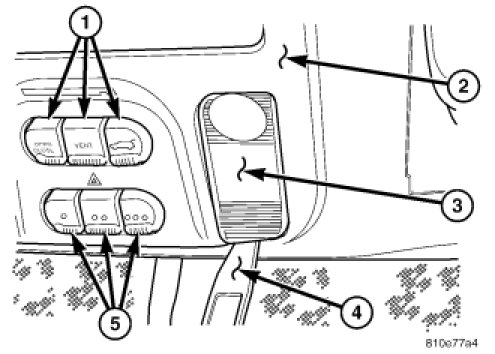

2. Place the front reading lamp lens (3) over the retaining pins making sure that they are lined up and them firmly snap into place.
3. Connect the battery negative cable.
4. Close hood.
5. Close front door.

REAR READING LAMP

SECOND AND THIRD ROWS





1. Place lamp over retaining clips in rear reading lamp unit retaining clips and firmly snap into place.

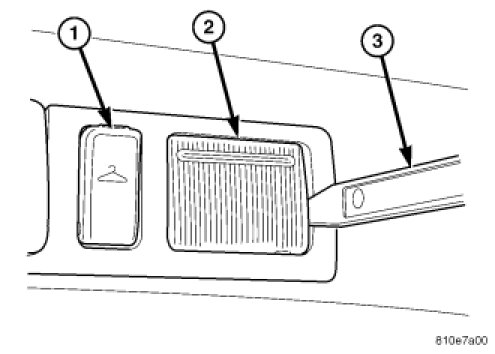

2. Place the rear reading lamp lens (2) over the retaining pins making sure that they are lined up and then firmly snap into place.
3. Connect the battery negative cable.
4. Close hood.
5. Close front door.
