License Plate Lamp - Removal

REMOVAL





1. Open hood, disconnect and isolate the battery negative cable.

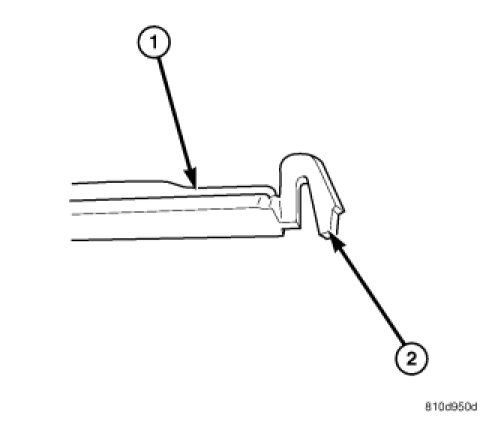

2. Using a trim stick or equivalent, gently pry in and then down on the left side (2) of the lamp cover (1) (shown reversed).




3. Place the tool at (1).
4. Pull license lamp out of liftgate light bar and remove.

NOTE: If the license plate lamp unit, located within the liftgate light bar needs replacing, Removal
