Lamp-Headlamp-Left

Component ID: 147

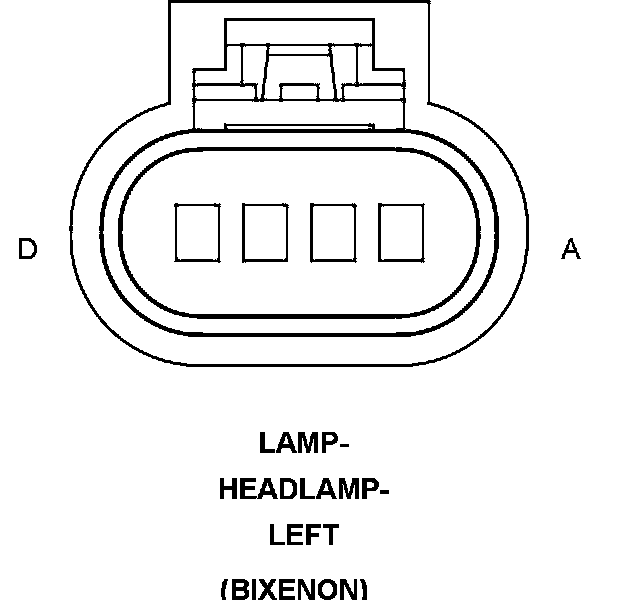

Component : LAMP-HEADLAMP-LEFT

Connector:
Name : LAMP-HEADLAMP-LEFT
Color :
# of pins : 4
Qualifier : (BIXENON)




A L43 18WT/DB LEFT LOW BEAM LAMP DRIVER
B L33 18WT/DG LEFT HIGH BEAM LAMP DRIVER
C Z343 18BK/LG GROUND
D Z345 18BK/LB GROUND

Component Location - 5




Component Location - 6

3.8L:

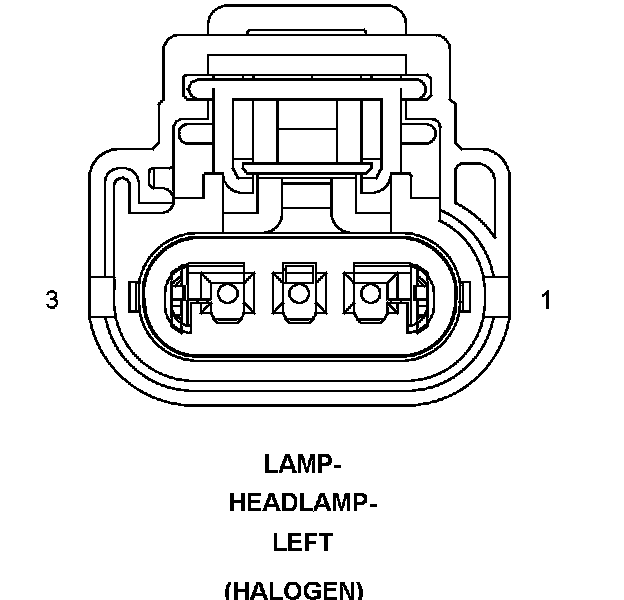

Connector:
Name : LAMP-HEADLAMP-LEFT
Color :
# of pins : 3
Qualifier : (HALOGEN)




Pin Circuit Description
1 L43 18WT/DB LEFT LOW BEAM LAMP DRIVER
2 Z343 18BK/LG GROUND
3 L33 18WT/DG LEFT HIGH BEAM LAMP DRIVER

Component Location - 5




Component Location - 6

3.8L:
