Lamp-Headlamp-Right

Component ID: 148
Component : LAMP-HEADLAMP-RIGHT

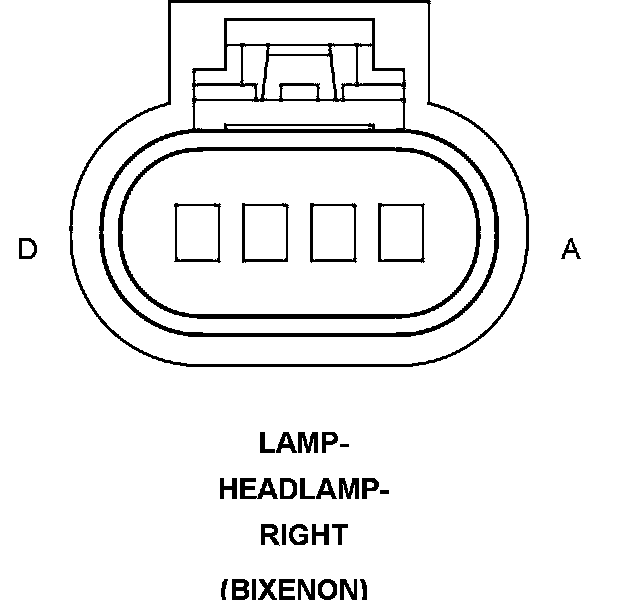

Connector:
Name : LAMP-HEADLAMP-RIGHT
Color :
# of pins : 4
Qualifier : (BIXENON)




A L44 16TN/WT RIGHT LOW BEAM LAMP DRIVER
B L34 16WT/GY RIGHT HIGH BEAM LAMP DRIVER
C Z344 16BK/TN GROUND
D Z346 16BK/LG GROUND

Component Location - 3

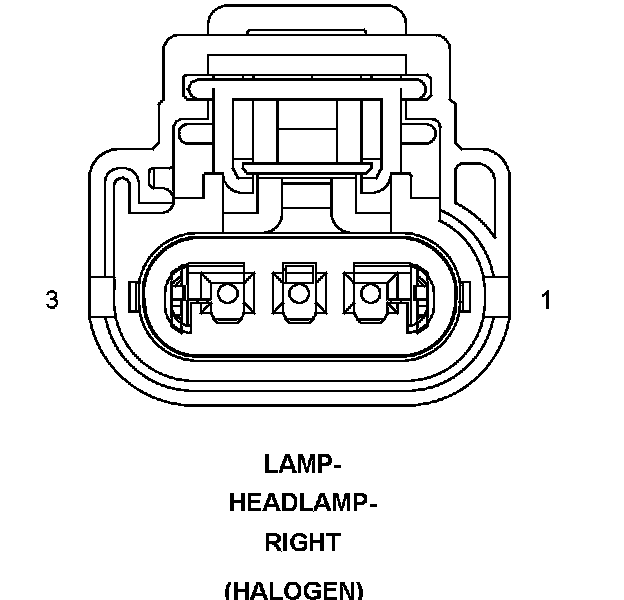

Connector:
Name : LAMP-HEADLAMP-RIGHT
Color :
# of pins : 3
Qualifier : (HALOGEN)




Pin Circuit Description
1 L44 16TN/WT RIGHT LOW BEAM LAMP DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM LAMP DRIVER

Component Location - 3
