Fog/Driving Lamp: Adjustments

FOG LAMP ALIGNMENT

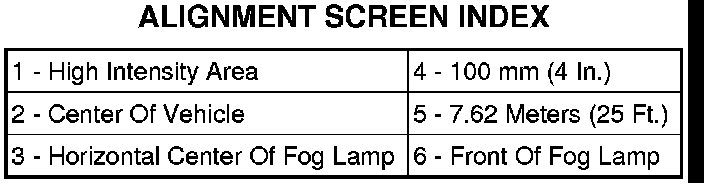

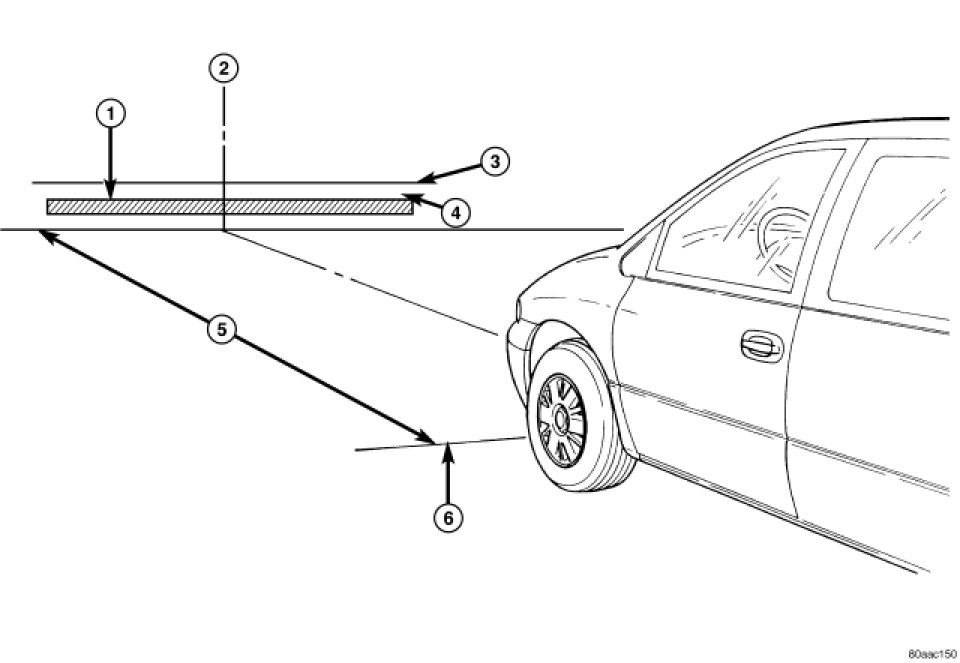

Prepare an alignment screen Adjustments. A properly aligned fog lamp will project a pattern on the alignment screen at (4), below the fog lamp center line (3) and straight ahead. To improve visual interpretation of the fog lamp pattern on the alignment screen, the headlamps should be in the "OFF" position.

The fog lamps are adjusted vertically by a adjustment screw located just above the fog lamp in the front.
