Installation

INSTALLATION





1. If replacing the lamp, push straight into glove box lamp switch.

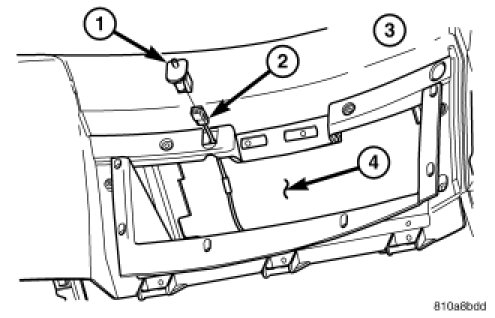

2. Position lamp switch (1) over retaining hole and firmly snap into place.
3. Reach up behind instrument panel (3) and connect the electrical connector (2).
4. Close glove box.
5. Close right door.
6. Connect the battery negative cable.
7. Close hood.
