Center High Mounted Stop Lamp - Removal

REMOVAL





The Center High Mounted Stop Lamp (CHMSL) is a Light Emitting Diode (LED) unit and must be replaced as such. If found inoperative or defective, replace the entire unit.

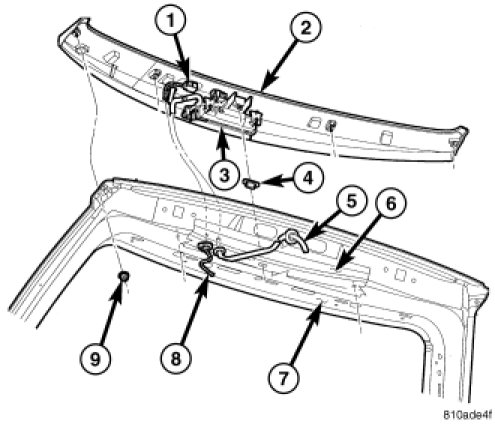

1. Remove the liftgate spoiler (2) Spoiler - Removal.
2. Separate the CHMSL (3) from the spoiler by removing the fasteners.
