Instrument Panel Cluster Bezel - Installation

INSTALLATION





1. Connect the electrical connector to the instrument panel switch pod (EVIC, NAV, Clock, and Hazard Switch).

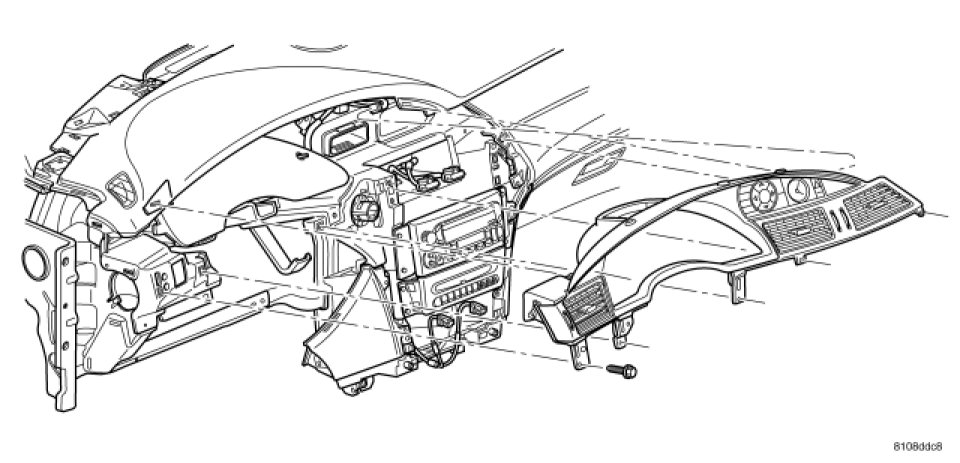

2. Position the cluster bezel over retaining slots and firmly snap into place.

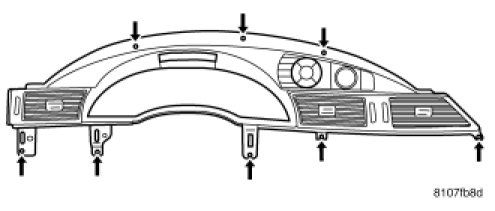

3. Install the eight retaining screws to the cluster bezel.
4. Position the left side instrument panel center stack trim from panel over retaining slots and firmly snap into place.
5. Install the instrument panel center bezel Instrument Panel Center Bezel - Installation.
6. Position the left lower instrument panel trim plate over the retaining slots and firmly snap into place. Install the two screws.
7. Position the left end cover over the retaining slots and firmly snap into place.
8. Install the knee blocker airbag Knee Blocker Airbag - Installation.
9. Position the steering opening cover over retaining and firmly snap into place. Install the two retaining screws.

WARNING: Do not connect the battery negative cable. Refer to appropriate testing. FIRST.

10. Verify vehicle and system operation.
