Instrument Cluster - Removal

REMOVAL

CLUSTER WITH NAVIGATION





1. Remove cluster bezel Instrument Panel Cluster Bezel - Removal.
2. Remove four nuts to the column (2) and lower to the seat.
3. Disconnect the two electrical connectors (1) from the bottom of the cluster accessed from underneath instrument panel.

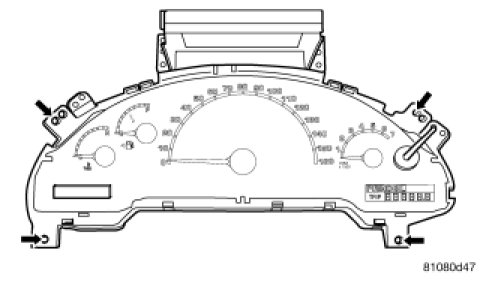

4. Remove the four retaining screws to the cluster.




5. Pull cluster straight out of the instrument panel opening. Be careful not to scratch the cluster face.
CLUSTER WITHOUT NAVIGATION





6. Remove cluster bezel Instrument Panel Cluster Bezel - Removal.
7. Disconnect the two electrical connectors (1) from the bottom of the cluster accessed from underneath instrument panel.




8. Remove the steering column shrouds Removal.
9. Remove the two retaining screws to the left multi-function switch and let hang.
10. Remove the two retaining screws to the right multi-function switch and let hang.
11. Remove the four retaining screws to the cluster.
12. Pull cluster straight out of the instrument panel opening. Be careful not to scratch the cluster face.
