Rear Blower Motor Power Module - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the front center floor console cover Removal.

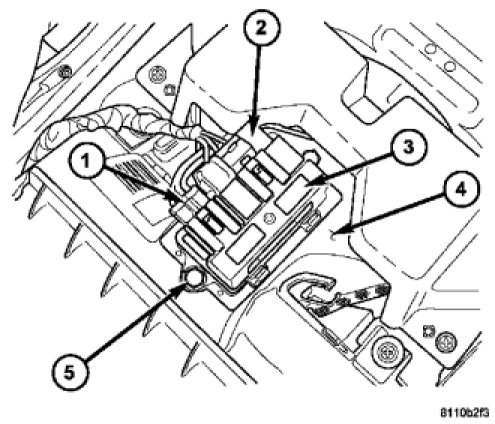

3. Disconnect the body wire harness connector (2) from the rear blower motor power module (3).
4. Disconnect the rear blower motor wire harness connector (1) from the power module.
5. Remove the two screws (5) that secure the power module to the rear blower motor housing (4) and remove the module.
