Front Air Distribution Housing Installation

AIR DISTRIBUTION HOUSING

NOTE: The air distribution housing must be removed from the HVAC housing and disassembled for service of the mode-air and blend-air doors.

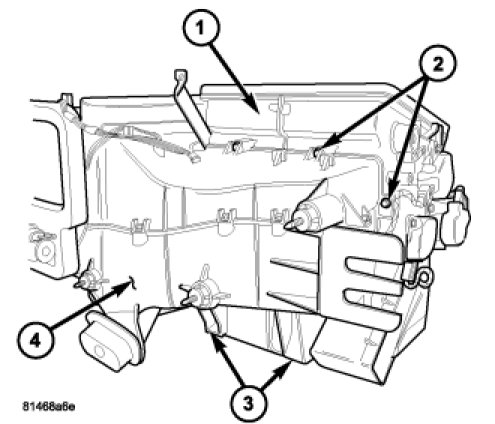

1. Install the air distribution housing (1) onto the rear of the HVAC housing (4) by inserting the two tabs (3) on the bottom of the distribution housing into the slots located on the bottom of the HVAC housing and tipping the distribution housing forward until it is properly aligned with the HVAC housing.
2. Install the four screws (2) that secure the air distribution housing to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the heater core Installation.




4. Position the HVAC wire harness onto the air distribution housing.

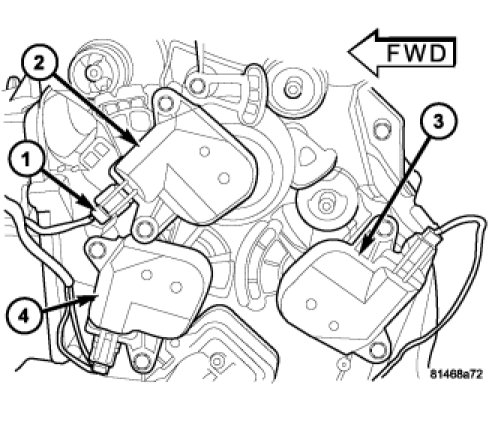

5. Connect the HVAC wire harness connectors (1) to the mode door actuator (2) and the two blend door actuators (3 and 4) located on the driver side of the air distribution housing.
6. Install the HVAC housing assembly .
