Front HVAC Housing

HVAC HOUSING

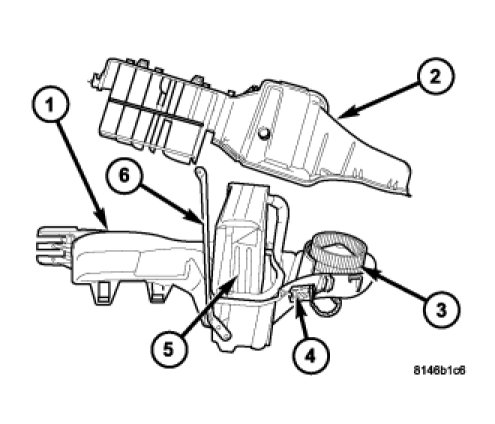

1. Install the A/C evaporator (5) into the lower HVAC housing (1). Make sure that the evaporator drain within the HVAC housing is clean and unrestricted and that the insulator around the A/C evaporator is properly installed.
2. Install the upper HVAC housing (2) onto the lower HVAC housing.
3. Install the thirteen screws that secure the two halves of the HVAC housing together. Tighten the screws to 2 Nm (17 in. lbs.).
4. Install the support bracket (6) and the two retaining screws. Tighten the screws to 2 Nm (17 in. lbs.).
5. Install the HVAC wiring harness. Make sure the harness is routed through all wiring retainers.
6. Install the blower motor (3) and connect the HVAC wire harness .
7. Install the blower motor resistor or power module (4), depending on application and connect the HVAC wire harness or.
8. Install the evaporator temperature sensor into the upper HVAC housing and connect the HVAC wiring harness Installation.
9. Install the A/C expansion valve Installation.




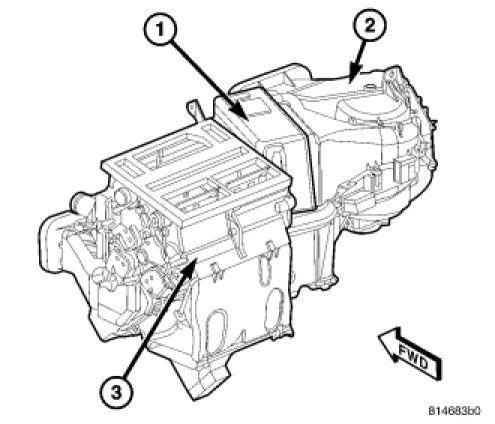

10. Install the air inlet housing (2) onto the HVAC housing (1) .
11. Install the air distribution housing (3) onto the HVAC housing .
12. Install the HVAC housing into the vehicle .
