Description - Rear

DESCRIPTION

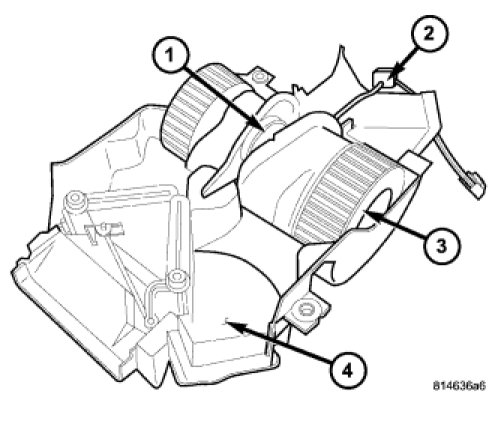

Vehicles equipped with 4 passenger seating and automatic temperature control (ATC) heating-A/C system, use a 12-volt, direct current (DC) rear blower motor (1). The rear blower motor has an integral wire harness (2) and two squirrel cage-type blower wheels (3) that are secured to the blower motor shaft. The blower motor and wheels are contained within the two halves of the rear blower motor housing (4), which is located under the front center floor console cover.
