Description - Front

DESCRIPTION





A blower motor resistor is used on vehicles equipped with the front manual temperature control (MTC) heating-A/C system. Vehicles equipped with the automatic temperature control (ATC) heating-A/C system use a blower motor power module, instead of the blower motor resistor .

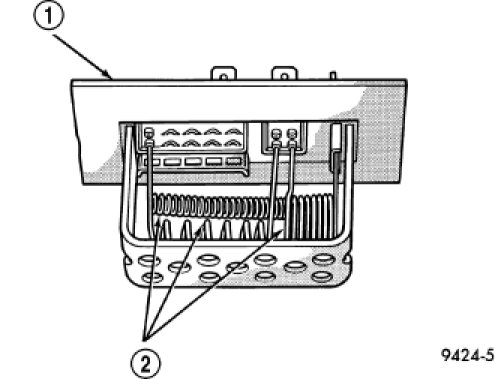

The front blower motor resistor is mounted to the rear of the front HVAC housing, directly behind the glove box. The front blower motor resistor consists of a mounting plate (1) with wire connector terminals and coiled resistor wires (2) surrounded by a metal heat sink.

The front blower motor resistor is accessed for service by removing the glove box.
