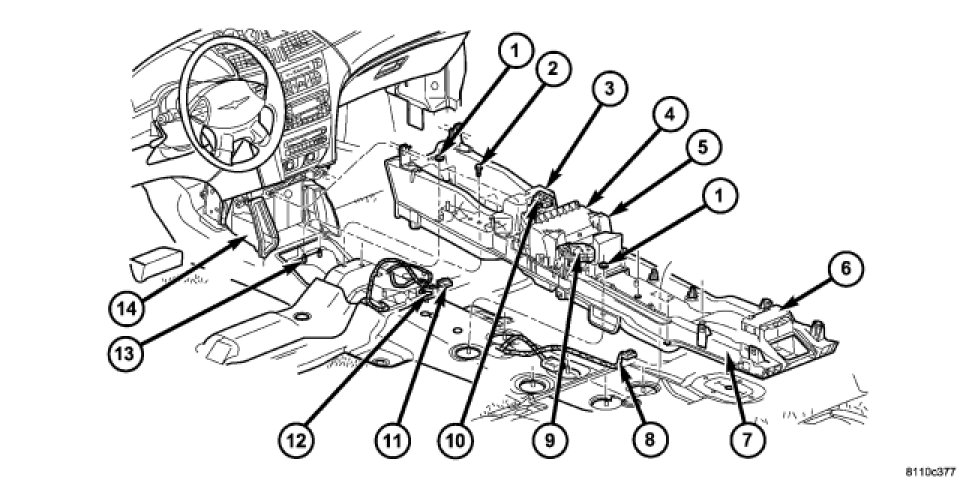

1. Remove the front and rear center floor console covers . Floor Console - Removal
2. Disconnect and isolate the negative battery cable.
3. Disconnect the body wire harness connector (8) from the hands-free module (6).
4. Disconnect the body wire harness connector (11) from the rear blower motor power module (10).
5. Disconnect the body wire harness connector (12) from the floor console mode door actuator (9).
6. Remove the body wire harness bracket from the rear console support bracket (5).
7. Remove the gear shift assembly .
8. If necessary, remove the rear console support bracket, front console support bracket (3), rear blower motor housing (4) and the hands-free module from the floor console base and duct assembly (7).
9. Remove the nine nuts (1) from the weld studs (13) and the two bolts (2) that secure the floor console base and duct assembly to the center floor panel.
10. Disconnect the floor console base and duct assembly from the floor distribution duct (14) and remove the base and duct assembly from the vehicle.
