1. Position the floor console base and duct assembly (3) into the vehicle.
2. Install the five nuts (1) and two bolts (2) that secure the floor console base and duct assembly to the center floor panel (4). Tighten the nuts and bolts to 5 Nm (45 in. lbs.).




3. Install the gear shift assembly .
4. Install the center floor console cover . Floor Console - Installation

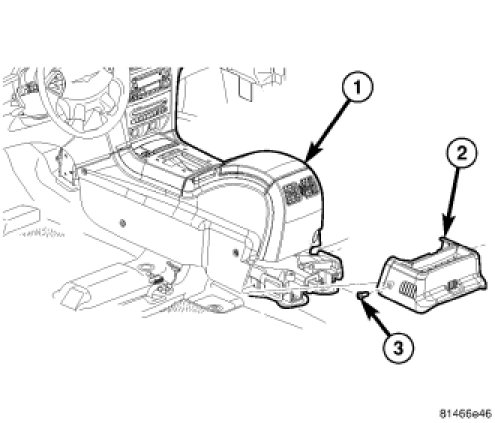

5. Install the rear floor outlet assembly (2) onto the rear of the center floor console (1).
6. Install the two screws (3) that secure the rear floor outlet assembly to the center floor console. Tighten the screws to 2 Nm (17 in. lbs.).
