MUFFLER AND RESONATOR





NOTE: To provide removal clearance between muffler/resonator pipe and rear axle parts, the rear suspension must be relieved of all body weight.

1. Raise vehicle on a body contact type hoist.

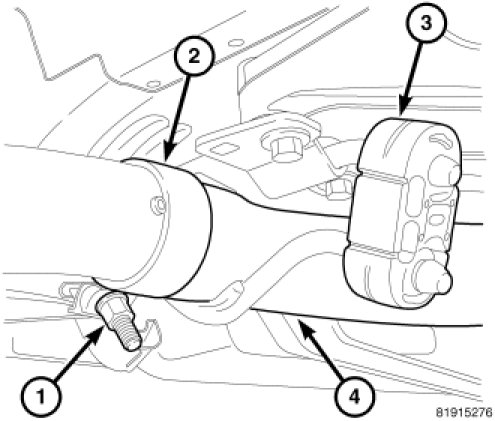

2. Apply a penetrating oil to band clamp (2).

CAUTION: When servicing the exhaust system, care must be exercised not to dent or bend the bellows of the flex-joint. Should this occur, the flex-joint will eventually fail, requiring replacement of the catalytic converter.

3. Loosen the band clamp nut (1).

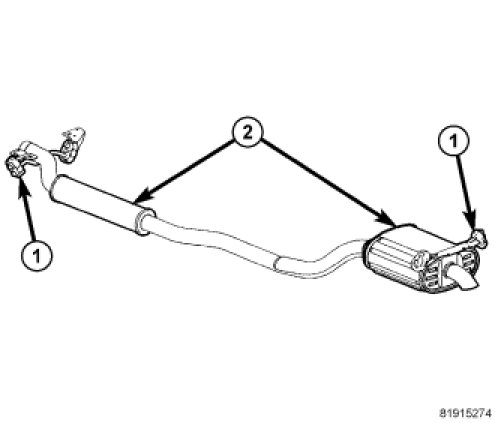

4. Support the muffler/resonator assembly (1).

CAUTION: Do not use any tools to remove the rubber isolators, remove by hand only. Soapy water or silicone based lubricant spray may be used to assist removal/installation of isolators. DO NOT use a petroleum based lubricant on the isolators, as damage to the rubber material can occur.

5. Remove the insulators (2) from the muffler/resonator assembly and remove from the vehicle.

NOTE: Care must be taken not to scratch the black paint on the rear of the resonator/muffler assembly.
