Exhaust System: Description and Operation

DESCRIPTION

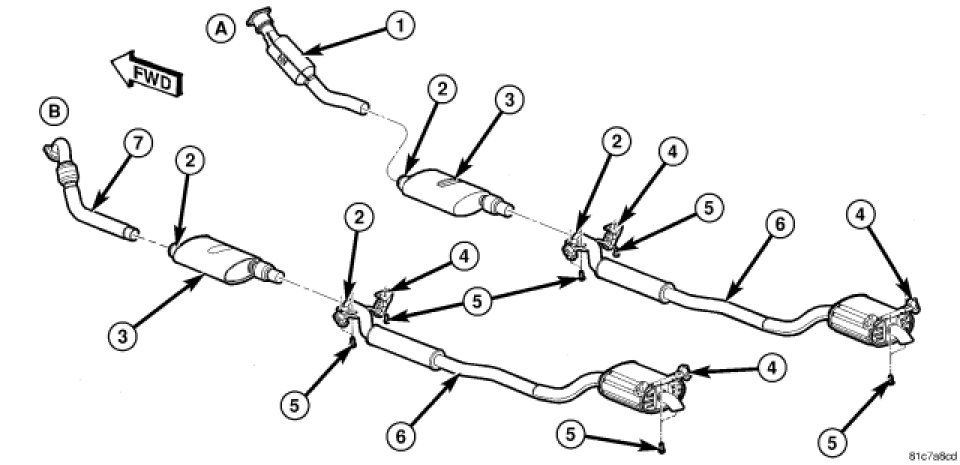

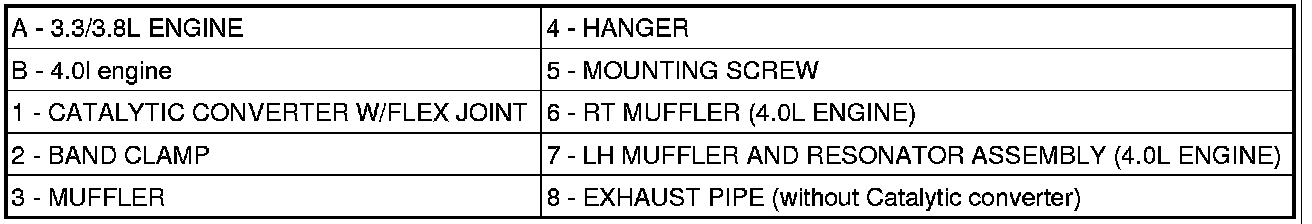

EXHAUST SYSTEM - 3.8L - 4.0L





The exhaust system consists of a catalytic converter, muffler, and a resonator with connecting pipes in-between. The system is serviced in three sections; the catalytic converter, the muffler, and the resonator and tailpipe. A band clamp is used to connect the joint between the muffler and catalytic converter. A band clamp is used to connect the muffler and the resonator and tailpipe. Support hanger rods with rubber isolators are used to support and isolate the exhaust system. A flexible joint, integral to the catalytic converter, allows for engine movement. A second flexible joint is located between the muffler and the resonator/tailpipe assemble to allow for exhaust system movement. The exhaust system is tuned for each vehicle/powertrain combination.
