Installation

INSTALLATION

RIGHT CYLINDER HEAD





1. Position the camshaft seal into the cylinder head.

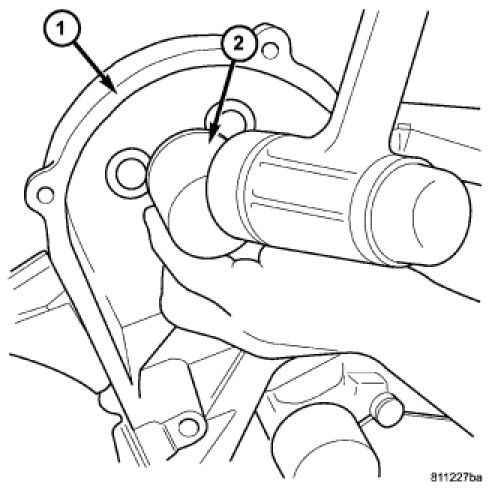

2. Using special tool MD-998306 tap the seal into place.
3. Apply light coat of clean engine oil to the camshaft oil seal lip and Special Tool 6788 Seal Protector Sleeve.

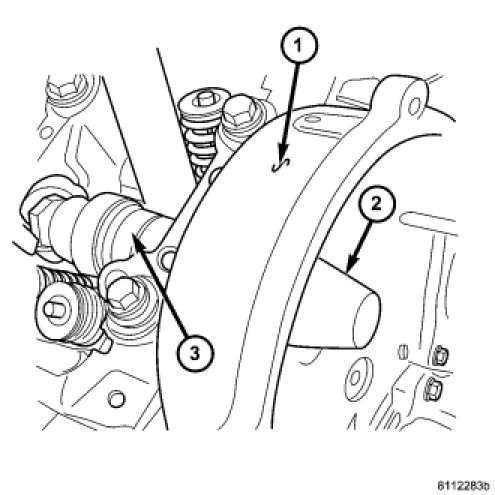

4. Install oil seal Special Tool 6788 Seal Protector Sleeve onto the camshaft.




5. Slide the camshaft forward, inserting the seal protector through the camshaft seal until the camshaft seats.
6. Remove Special Tool 6788 from the camshaft.
7. Install the camshaft thrust plate with new gasket, to the rear of the cylinder head.
8. Install camshaft sprocket and timing belt Timing Belt & Sprockets - Installation.

LEFT CYLINDER HEAD





1. Position the camshaft seal into the cylinder head
2. Using special tool MD-998306 tap the seal into place.
3. Apply light coat of engine oil to the camshaft oil seal lip and Special Tool 6788 Seal Protector Sleeve.
4. Install oil seal Special Tool 6788 Seal Protector Sleeve onto the camshaft
5. Slide the camshaft forward, inserting the seal protector through the camshaft seal until the camshaft seats.




6. Remove Special Tool 6788 from the camshaft.
7. Install the camshaft thrust plate with new gasket, to the rear of the cylinder head.
8. Install rear timing belt coverTiming Cover - Installation.
9. Install the camshaft gear and align the timing marks.
10. Install the timing belt Timing Belt & Sprockets - Installation.
11. Install the rocker arm assembly.
12. Install the cylinder head cover.
13. Install the front timing belt cover Timing Cover - Installation.
14. Install the vibration damper Vibration Damper - Installation.
15. Fill cooling system Service and Repair.
16. Connect the negative battery cable.
