Idler Pulley - Installation







INSTALLATION




IDLER PULLEYS - 3.3/3.8L - 4.0L

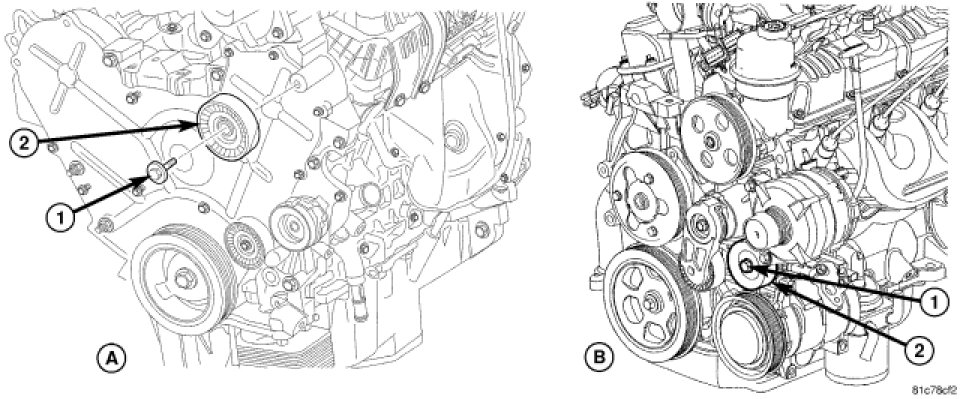

1. Install bolt and idler pulley Tighten bolt 41 Nm (30).
2. Install the accessory drive belt Accessory Drive Belt - Installation.
