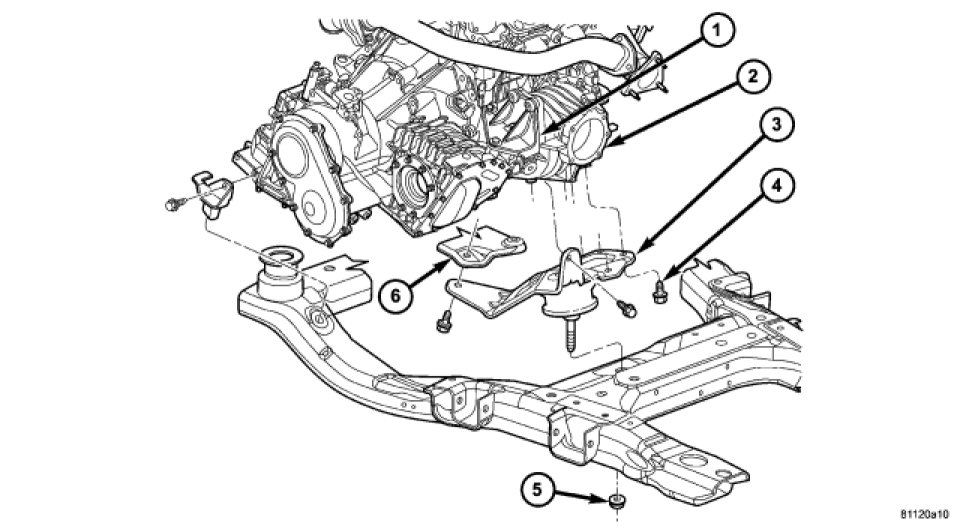

Right Engine Mount

INSTALLATION





1. Install the engine mount and plate.Tighten bolts to 54 Nm (40 lbs. ft.).
2. Install the engine mount upper nut. Tighten nut to 101 Nm (75 lbs. ft.).
3. Install right engine mount bracket bolts.Tighten bolts to 54 Nm (40 lbs. ft.).
4. Lower the vehicle.
5. Remove the engine support fixture.
6. Raise and support the vehicle.
7. Install both lower engine mount to cradle nuts. Tighten nuts to 101 Nm (75 lbs. ft.).
8. Lower vehicle and connect the negative battery cable.
