Left Engine Mount







INSTALLATION

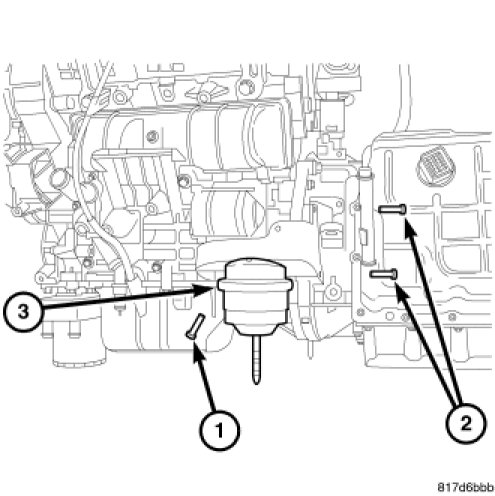

1. Install engine mount to bracket. Tighten nut to 101 Nm (75 lbs. ft.).
2. Install left mount to the engine block. Tighten bolts to 54 Nm ( 40 lbs.ft.).
3. Lower vehicle.
4. Remove the engine support fixture.
5. Raise and support the vehicle.
6. Install both of the engine mount to cradle nut. Tighten nut to 101 Nm (75 lbs. ft.).
7. Lower vehicle.
8. Install radiator fan assembly Radiator Fan - Installation.
9. Install the engine cover.
10. Connect the negative battery cable.
