Left

REMOVAL

WARNING: DO NOT START OR RUN ENGINE WITH CYLINDER HEAD COVER REMOVED FROM THE ENGINE. DAMAGE OR PERSONAL INJURY MAY OCCUR.

1. Disconnect and isolate the negative battery cable.
2. Remove the upper intake manifold from the engine Intake Manifold - Removal.
3. Cover lower intake manifold with a suitable cover during service.

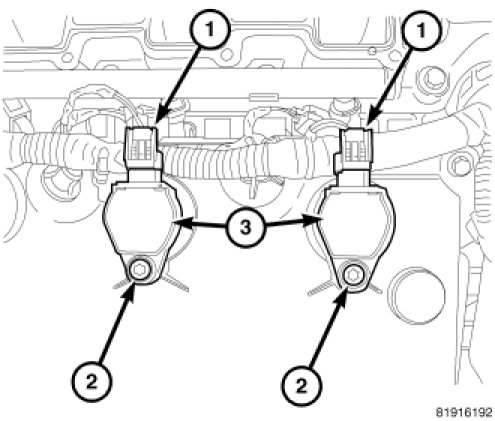

4. Disconnect and remove the three ignition coils (3).
5. Remove the upper intake manifold support brackets from the engine.
6. Position the engine wiring harness aside.
7. Completely loosen the cylinder head cover retaining bolts and remove the cylinder head cover.
8. Disconnect the MVA hose from the valve cover assembly (if required).
