Home >> Chrysler >> 2008 >> Pacifica V6-4.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Engine Block Heater >> Service and Repair >> Engine Block Heater - Removal

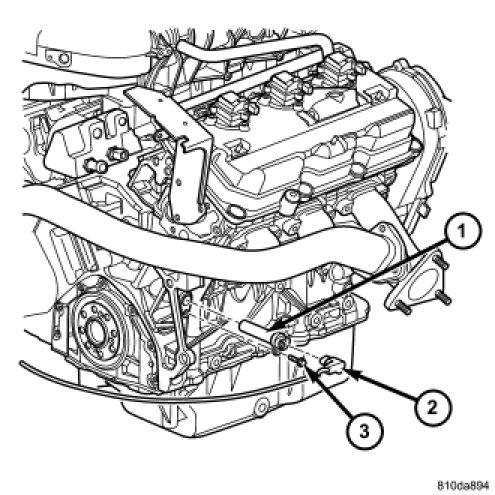

Engine Block Heater - Removal







4.0L ENGINE





1. Disconnect the power cord plug from heater.
2. Remove bolt. Remove the block heater assemble.
