Engine Coolant Temperature Sensor - Removal

4.0L ENGINE





WARNING: Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the coolant temperature sensor.

1. Drain cooling system below engine coolant temperature sensor level Service and Repair.
2. Disconnect negative cable from remote jumper terminal.

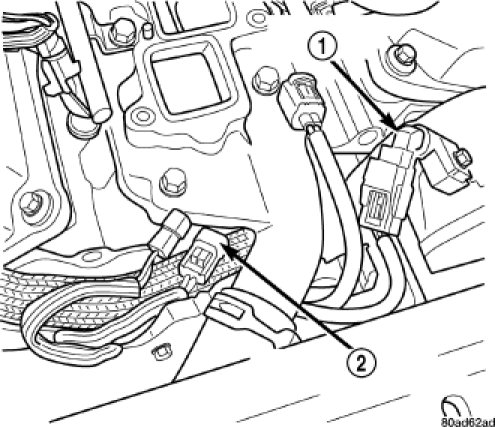

3. With the engine cold, disconnect coolant sensor electrical connector.
4. Remove sensor.
