Coolant Recovery Container - Installation

INSTALLATION

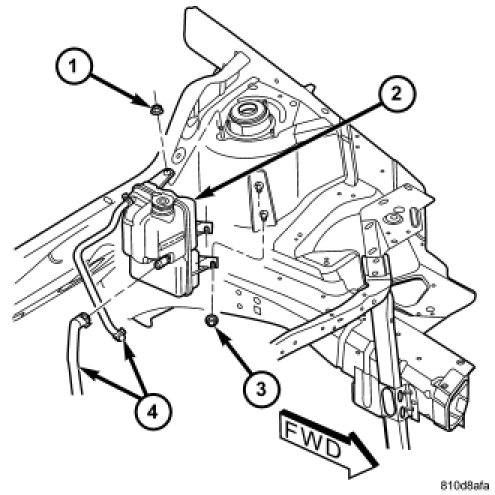

1. Connect the supply and return hoses to coolant recovery container.
2. Position the recovery container on the frame rail.
3. Install the upper attaching screw and tighten to 7 Nm (60 in. lbs.).
4. Raise the vehicle on hoist.
5. Install the lower attaching screws and tighten to 8.5 Nm (75 in. lbs.).
6. Lower the vehicle.
7. Add coolant to container as necessaryService and Repair.
