Group 8W-45 (Body Control Module)

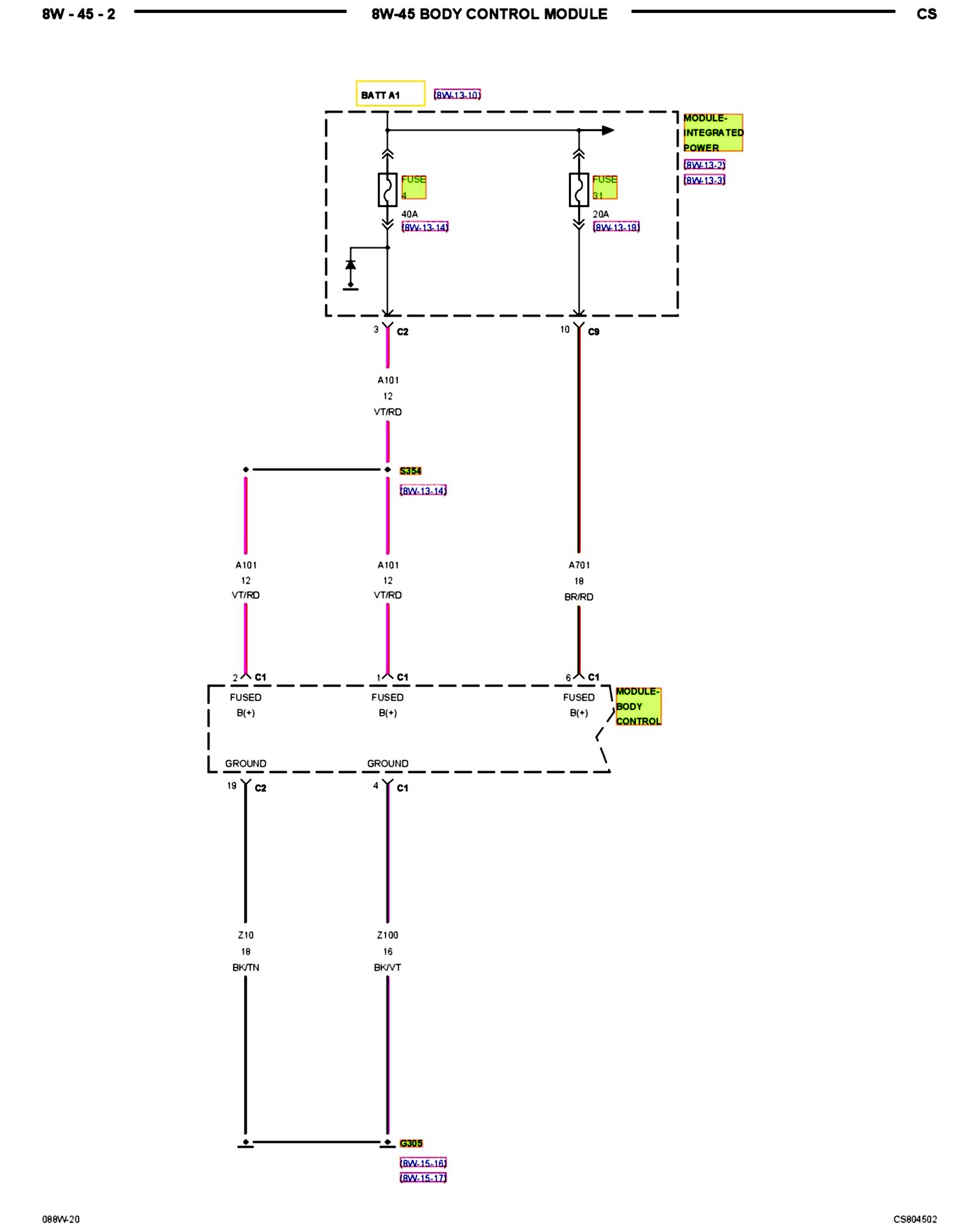

8w-45-02:



8w-45-03:



8w-45-04:



8w-45-05:



8w-45-06:



8w-45-07:



8w-45-08:



8w-45-09:

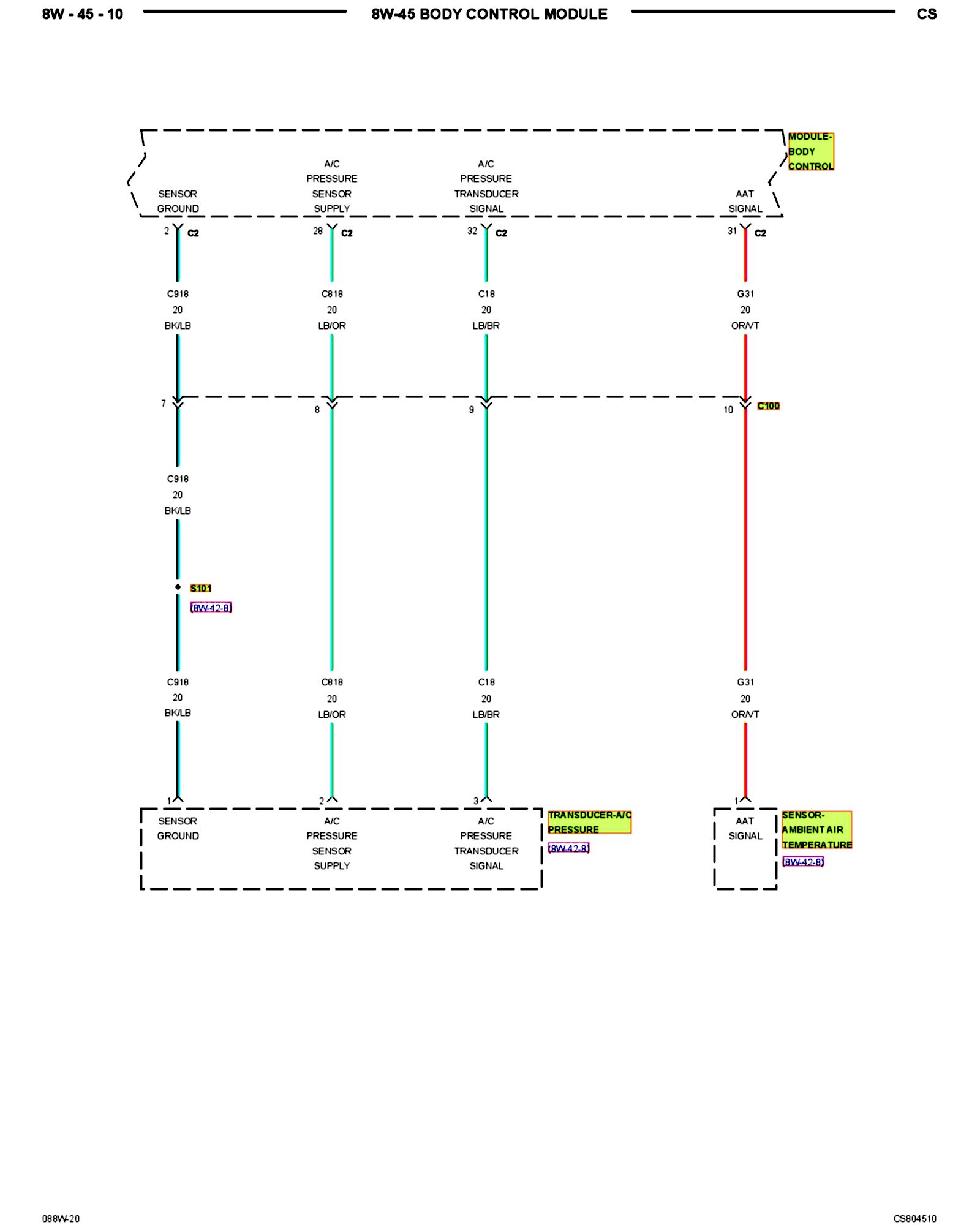

8w-45-10:

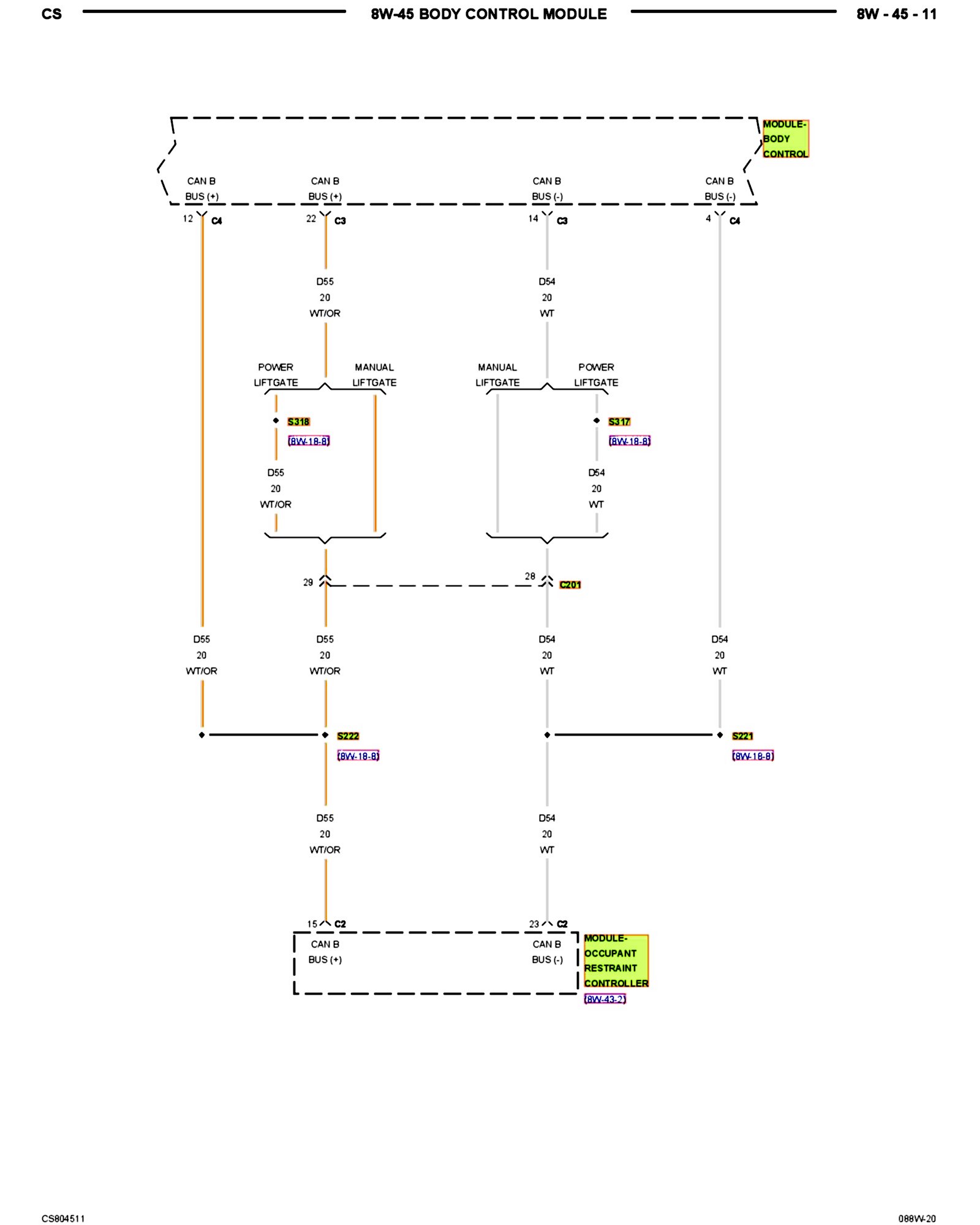

8w-45-11:



8w-45-12:
