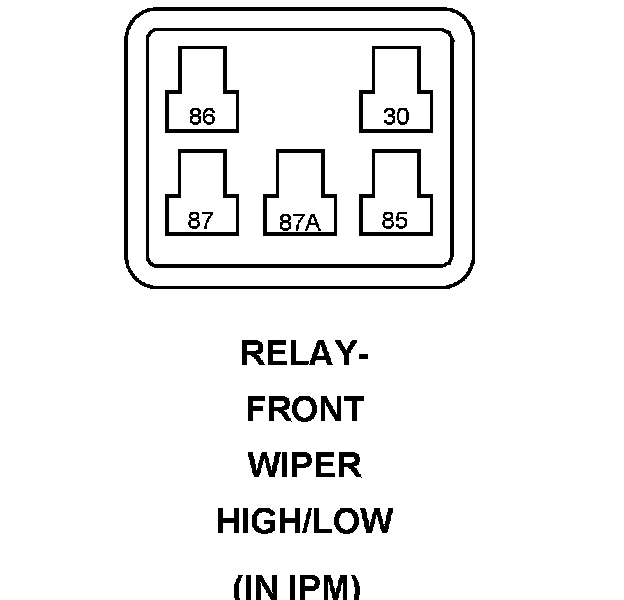

Relay-Front Wiper High/Low

Component ID: 226
Component : RELAY-FRONT WIPER HIGH/LOW

Connector:
Name : RELAY-FRONT WIPER HIGH/LOW
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 INTERNAL FRONT WIPER HIGH/LOW RELAY CONTROL
87 W4 12BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
87A W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
