Motor-Wiper-Rear

Component ID: 210
Component : MOTOR-WIPER-REAR

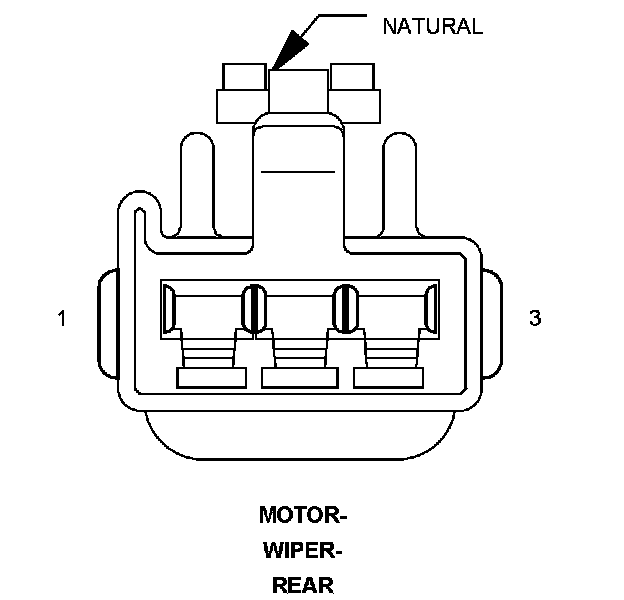

Connector:
Name : MOTOR-WIPER-REAR
Color : NATURAL
# of pins : 3




Pin Circuit Description
1 Z213 18BK/OR GROUND
2 W17 20BR/LG REAR WIPER PARK SWITCH SENSE
3 W13 18BR/WT REAR WIPER MOTOR CONTROL

Component Location - 44
