Sensor-Wheel Speed-ABS-Left Rear

Component ID: 377
Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

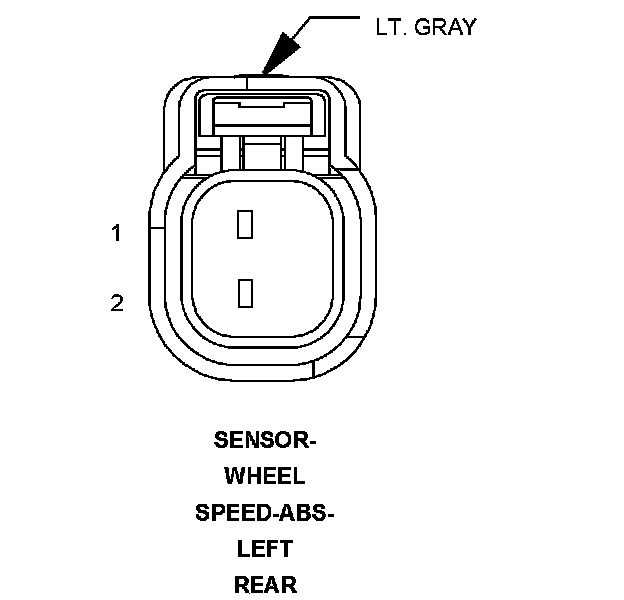

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL

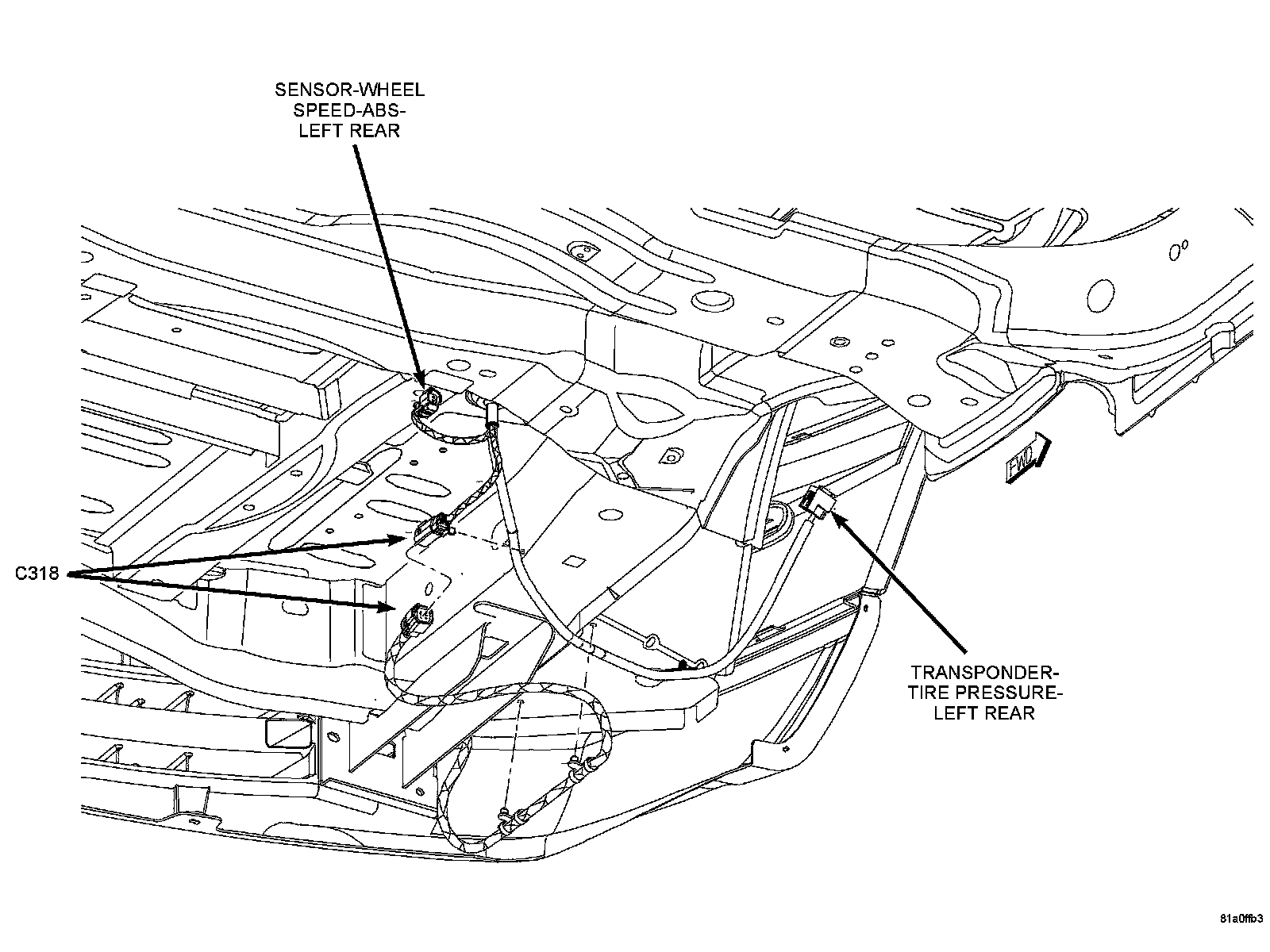

Component Location - 28




Component Location - 36
