Sensor-Wheel Speed-ABS-Left Front

Component ID: 376
Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT

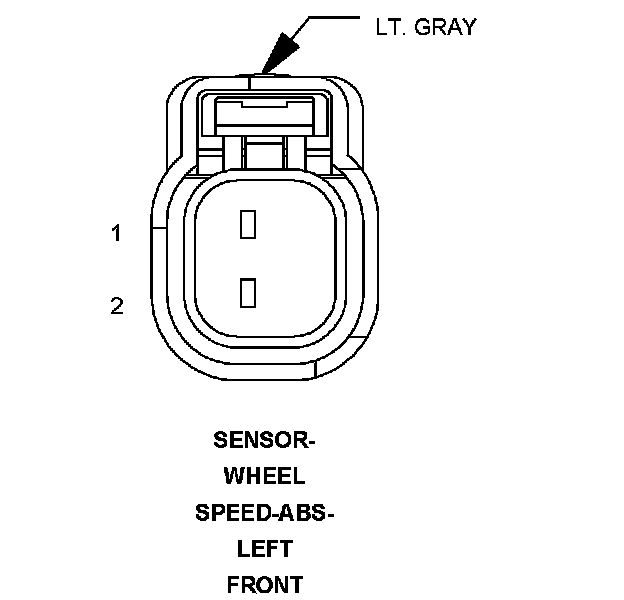

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL

Component Location - 6

3.8L:

Component Location - 9

4.0L:
