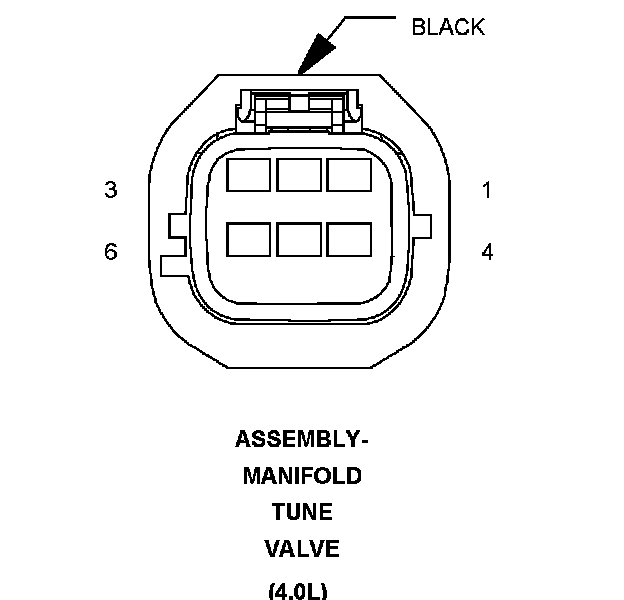

Assembly-Manifold Tune Valve

Component ID: 16
Component : ASSEMBLY-MANIFOLD TUNE VALVE

Connector:
Name : ASSEMBLY-MANIFOLD TUNE VALVE
Color : BLACK
# of pins : 6
Qualifier : (4.0L)




Pin Circuit Description
1 Z816 20BK/WT GROUND
2 - -
3 K136 18BR MTV CONTROL
4 K900 20DB/DG SENSOR GROUND
5 K234 18DB/OR MTV SIGNAL
6 F856 20YL/PK 5 VOLT SUPPLY
