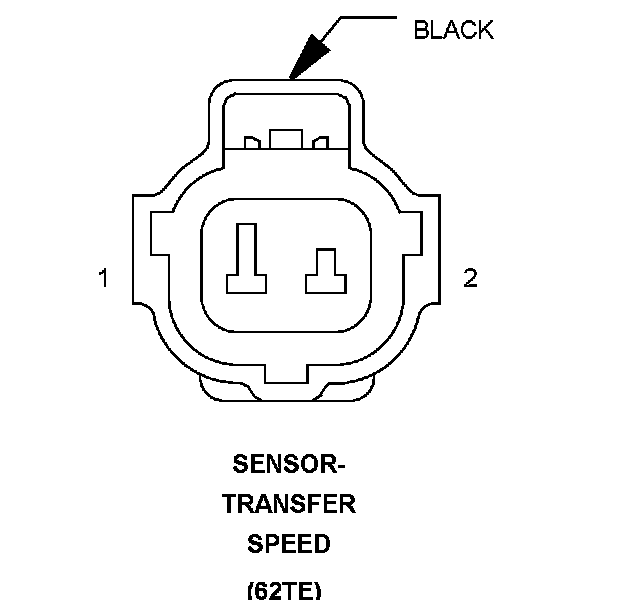

Sensor-Transfer Speed

Component ID: 373
Component : SENSOR-TRANSFER SPEED

Connector:
Name : SENSOR-TRANSFER SPEED
Color : BLACK
# of pins : 2
Qualifier : (62TE)




Pin Circuit Description
1 T85 18DG/LG TRANSFER SPEED SIGNAL
2 T13 18DG/VT SENSOR GROUND
