Throttle Body

Component ID: 413
Component : THROTTLE BODY

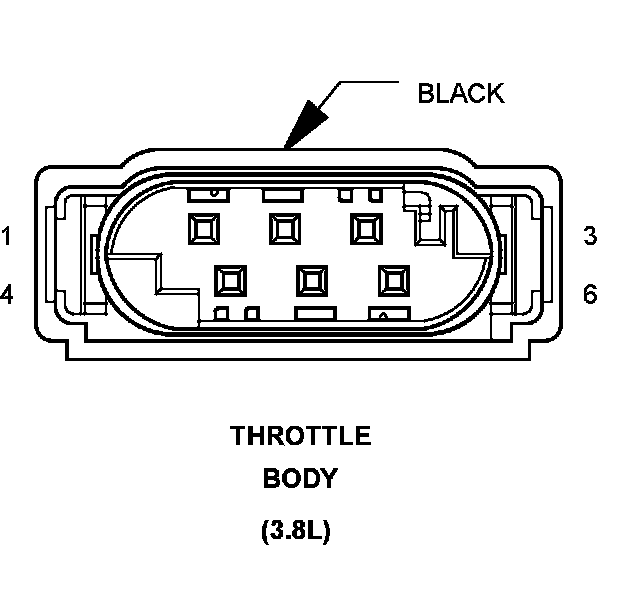

Connector:
Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (3.8L)




Pin Circuit Description
1 K124 20DB/GY ETC MOTOR (+)
2 F855 20PK/YL 5 VOLT SUPPLY
3 K922 20BR/DB TP SENSOR GROUND
4 K126 20DB/LG ETC MOTOR (-)
5 K122 20BR/DG TP SIGNAL 2
6 K22 20BR/OR TP SIGNAL 1



Connector:

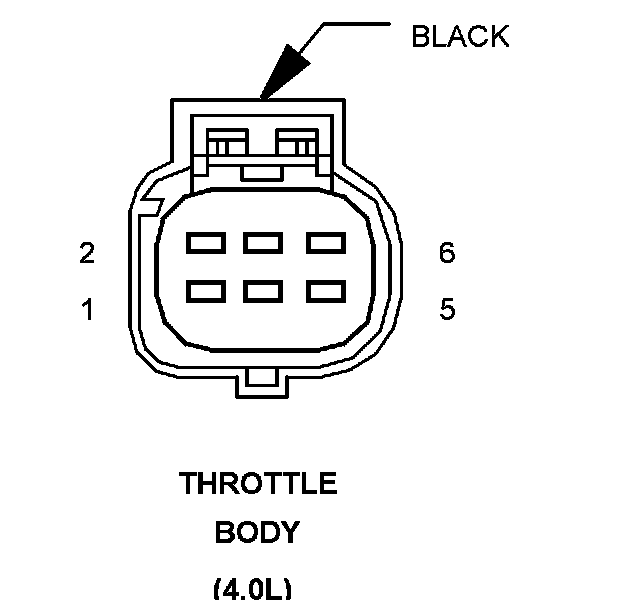

Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (4.0L)




Pin Circuit Description
1 K22 18BR/OR TP SIGNAL 1
2 F855 18PK/YL 5 VOLT SUPPLY
3 K124 18DB/GY ETC MOTOR (+)
4 K122 18BR/DG TP SIGNAL 2
5 K126 18DB/LG ETC MOTOR (-)
