Television / Monitor

Component ID: 193

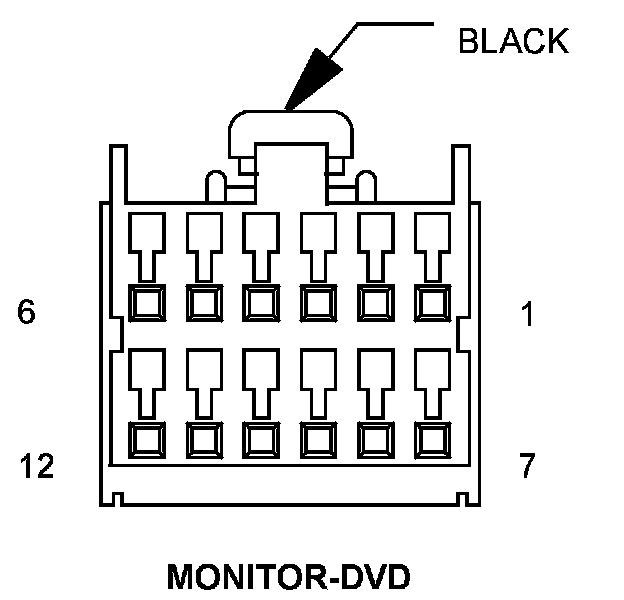

Component : MONITOR-DVD

Connector:
Name : MONITOR-DVD
Color : BLACK
# of pins : 12




Pin Circuit Description
1 X114 20GY/TN FUSED B(+)
2 X211 20YL/GY FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
3 X963 22WT HEADPHONE I/R XMTR ENABLE
4 X961 22GY/OR HEADPHONE AUDIO SIGNAL LEFT
5 X915 22GY/LB VIDEO CONTROL
6 X515 22GY/OR VIDEO SIGNAL
7 X530 20GY/DB VIDEO RETURN
8 - -
9 X555 22VT/OR VIDEO PLAY SIGNAL
10 X960 22GY/WT HEADPHONE AUDIO SIGNAL RIGHT
11 X962 22DG/WT HEADPHONE RETURN
12 X955 22 SHIELD

Component Location - 43
