Starter Motor

Component ID: 390
Component : STARTER

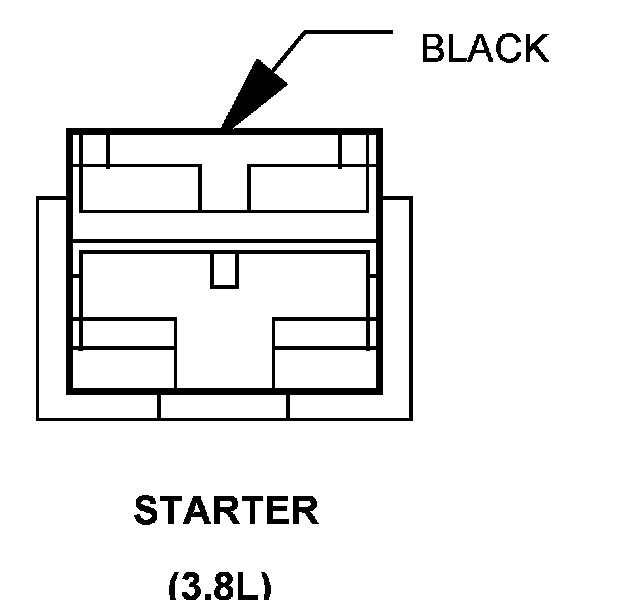

Connector:
Name : STARTER
Color : BLACK
# of pins : 1
Qualifier : (3.8L)




Pin Circuit Description
1 T750 12YL/GY STARTER MOTOR RELAY OUTPUT

Component Location - 11




Component Location - 13

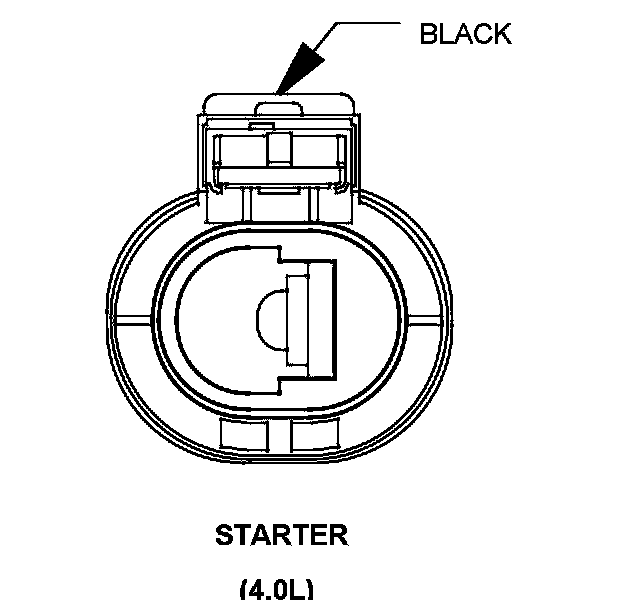

Connector:
Name : STARTER
Color : BLACK
# of pins : 1
Qualifier : (4.0L)




Pin Circuit Description
1 T750 12YL/GY STARTER MOTOR RELAY OUTPUT

Component Location - 11




Component Location - 13

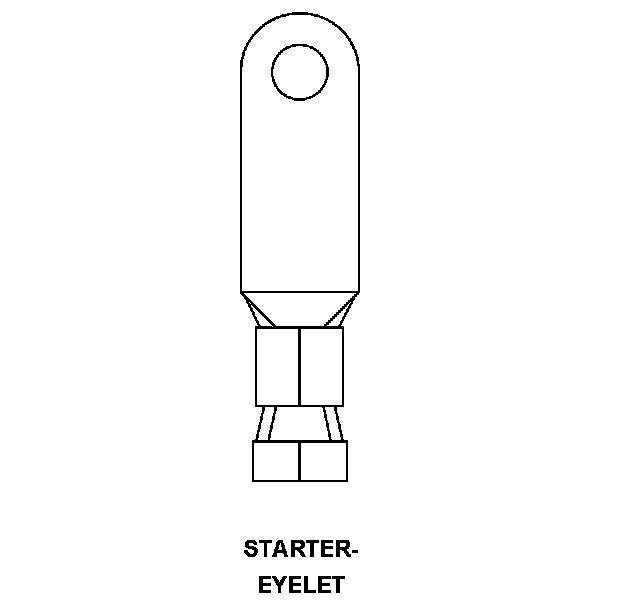

Connector:
Name : STARTER-EYELET
Color :
# of pins : 1




Pin Circuit Description
1 A8 4RD FUSED B(+)
Pin Circuit Description
1 A802 8LB FUSED B(+)

Component Location - 11




Component Location - 13
