Speaker-Subwoofer

Component ID: 389
Component : SPEAKER-SUBWOOFER

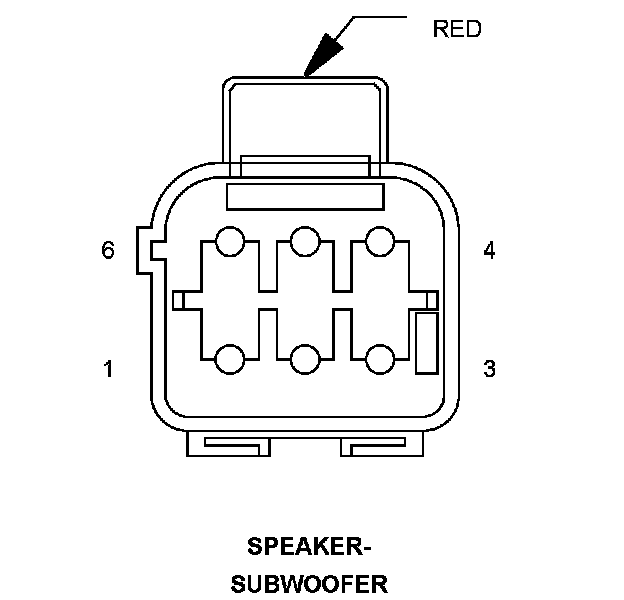

Connector:
Name : SPEAKER-SUBWOOFER
Color : RED
# of pins : 6




Pin Circuit Description
1 X301 18GY/WT AMPLIFIED SUBWOOFER 2 (+)
2 - -
3 X300 18GY/BR AMPLIFIED SUBWOOFER 1 (+)
4 X390 18DG/BR AMPLIFIED SUBWOOFER 1 (-)
5 - -
6 X391 18DG/WT AMPLIFIED SUBWOOFER 2 (-)

Component Location - 31




Component Location - 34
