Speaker-Right Rear Door

Component ID: 388

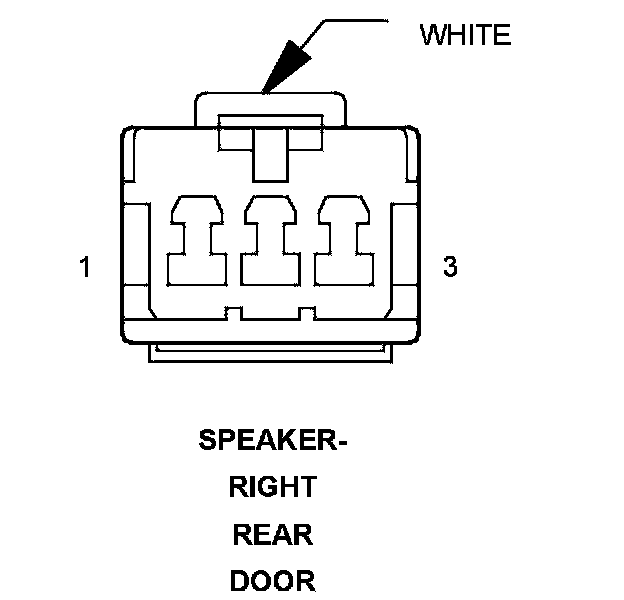

Component : SPEAKER-RIGHT REAR DOOR

Connector:
Name : SPEAKER-RIGHT REAR DOOR
Color : WHITE
# of pins : 3




Pin Circuit Description
1 X206 18DG/LG AMPLIFIED RIGHT REAR DOOR SPEAKER (+)
2 - -
3 X296 18DG/GY AMPLIFIED RIGHT REAR DOOR SPEAKER (-)

Component Location - 42
