Speaker-Right Front Door-Woofer

Component ID: 387

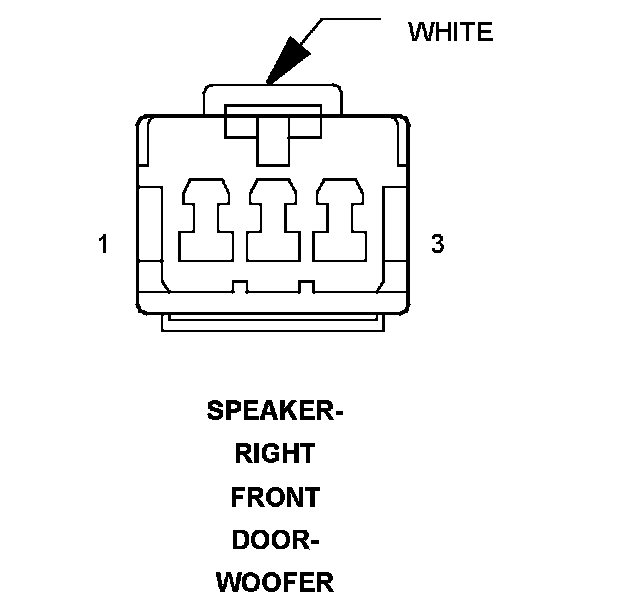

Component : SPEAKER-RIGHT FRONT DOOR-WOOFER

Connector:
Name : SPEAKER-RIGHT FRONT DOOR-WOOFER
Color : WHITE
# of pins : 3




Pin Circuit Description
1 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
2 - -
3 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)

Component Location - 40
