Speaker-Instrument Panel-Center

Component ID: 382

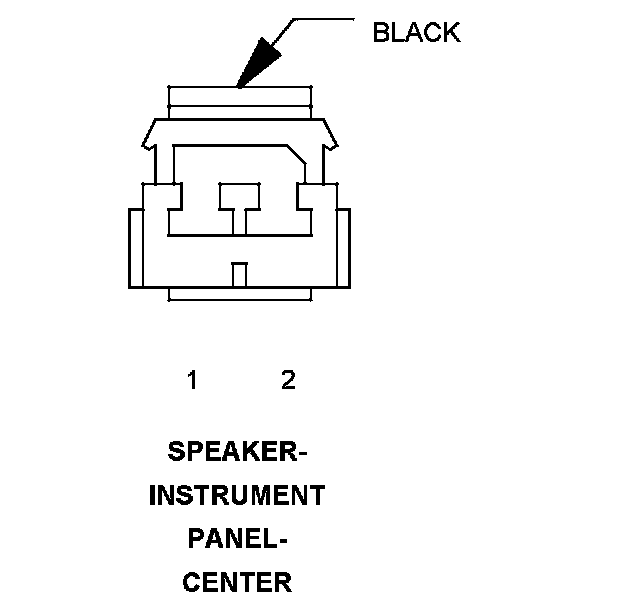

Component : SPEAKER-INSTRUMENT PANEL-CENTER

Connector:
Name : SPEAKER-INSTRUMENT PANEL-CENTER
Color : BLACK
# of pins : 2




Pin Circuit Description
1 X200 18GY/DB AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (+)
2 X290 18GY/OR AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (-)

Component Location - 14




Component Location - 17
