Shifter A/T

Component ID: 18
Component : ASSEMBLY-SHIFT LEVER

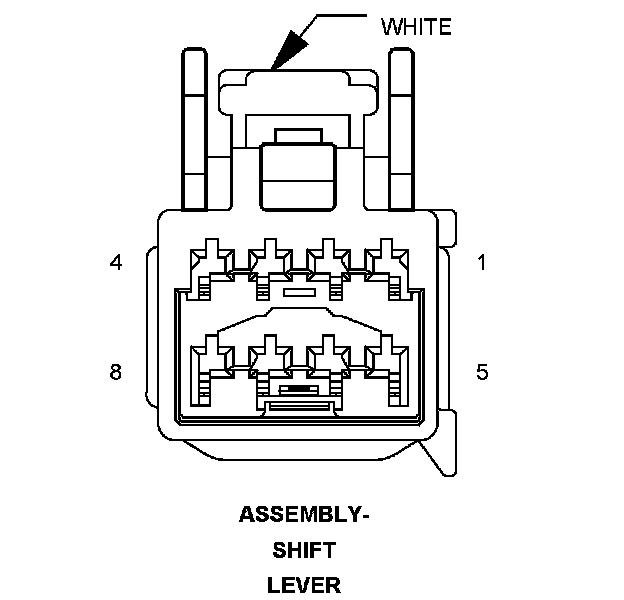

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color : WHITE
# of pins : 8




Pin Circuit Description
1 Z101 18BK/VT GROUND
2 Z65 20BK/YL GROUND
3 Z157 18BK/LG GROUND
4 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
5 T5 20DG/YL AUTOSTICK UPSHIFT SIGNAL
6 E12 18OR/GY PANEL LAMPS DRIVER
7 - -
8 F2 18PK/YL IGNITION SWITCH OUTPUT (RUN-START)

Component Location - 14




Component Location - 23
