Heater-Seat Cushion-Passenger

Component ID: 135
Component : HEATER-SEAT CUSHION-PASSENGER

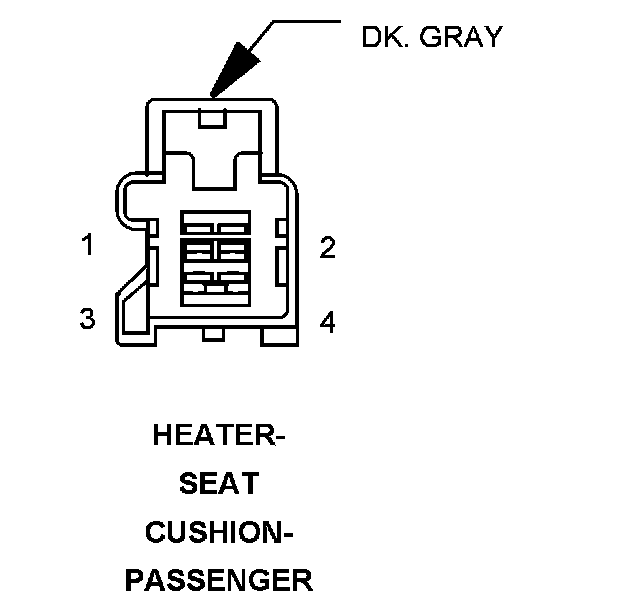

Connector:
Name : HEATER-SEAT CUSHION-PASSENGER
Color : DK. GRAY
# of pins : 4




Pin Circuit Description
1 P95 18LG/WT PASSENGER SEAT HEATER B(+) DRIVER
2 - -
3 - -
4 P97 18LG/YL PASSENGER SEAT HEATER GROUND

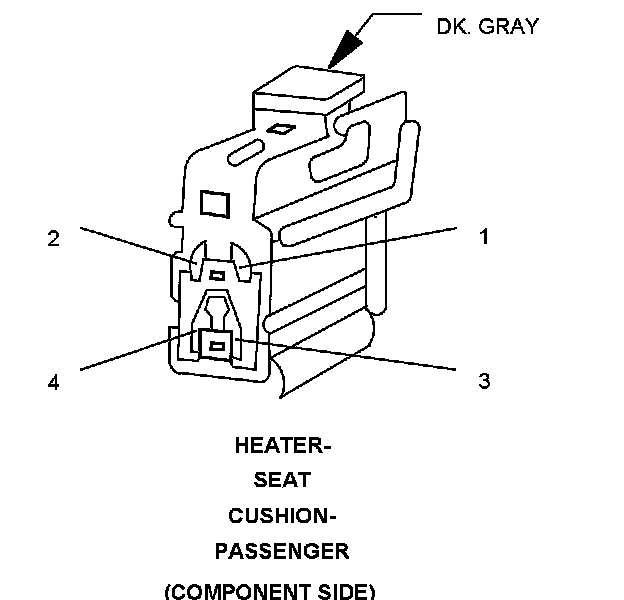

Connector:
Name : HEATER-SEAT CUSHION-PASSENGER
Color : DK. GRAY
# of pins : 4
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 RD PASSENGER SEAT HEATER B(+) DRIVER
2 - -
3 - -
4 BK PASSENGER SEAT HEATER GROUND
