Heated-Seat Middle Row-Right

Component ID: 131
Component : HEATED-SEAT MIDDLE ROW-RIGHT

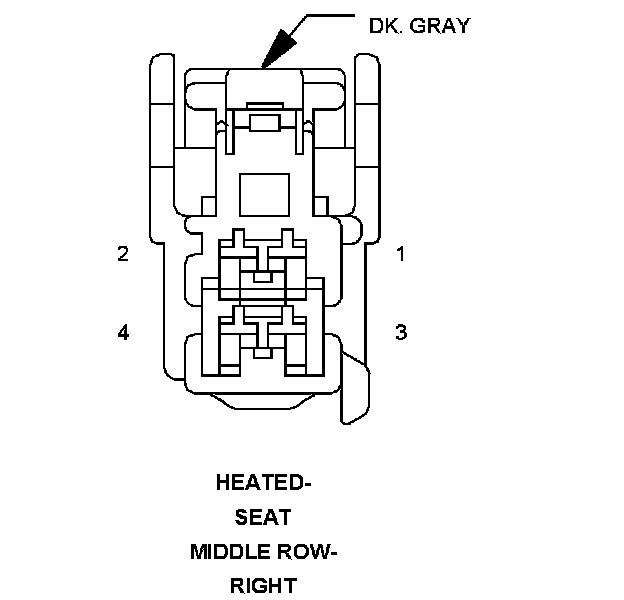

Connector:
Name : HEATED-SEAT MIDDLE ROW-RIGHT
Color : DK. GRAY
# of pins : 4




Pin Circuit Description
1 P188 16LG/VT RIGHT MIDDLE ROW SEAT HEATER B(+) DRIVER
2 Z870 18BK/YL GROUND
3 P189 20LG/WT MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY
4 P196 20LG/LB RIGHT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT

Component Location - 31




Component Location - 39
