Receiver-Satellite

Component ID: 219
Component : RECEIVER-SATELLITE

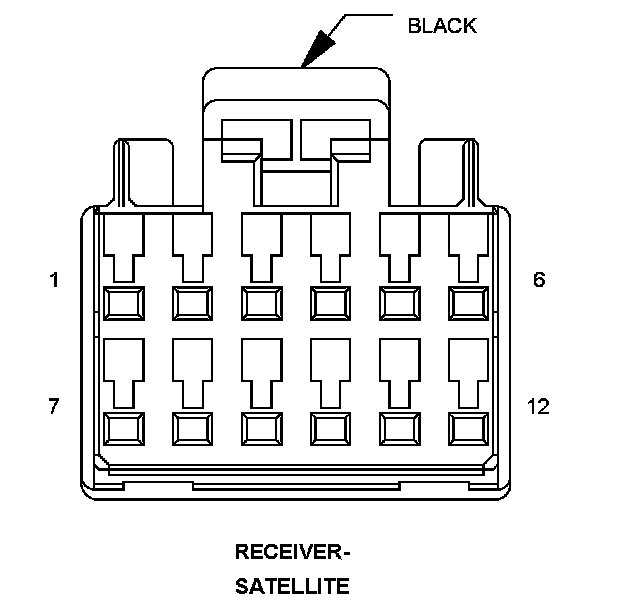

Connector:
Name : RECEIVER-SATELLITE
Color : BLACK
# of pins : 12




Pin Circuit Description
1 X17 22DG/OR AUDIO SIGNAL LEFT (+)
2 - -
3 X480 20DG/LB AUDIO MUX ENABLE
4 Z141 20BK/TN GROUND
5 X112 20DG/GY IGNITION RUN/ACC SIGNAL
6 X160 20GY/YL FUSED B(+)
7 X16 22DG/YL AUDIO SIGNAL RIGHT (+)
8 X917 22DG AUDIO SIGNAL COMMON
9 - -
10 - -
11 - -
12 D25 20WT/VT PCI BUS

Component Location - 34
