Multiplexer-Satellite

Component ID: 211
Component : MULTIPLEXER-SATELLITE

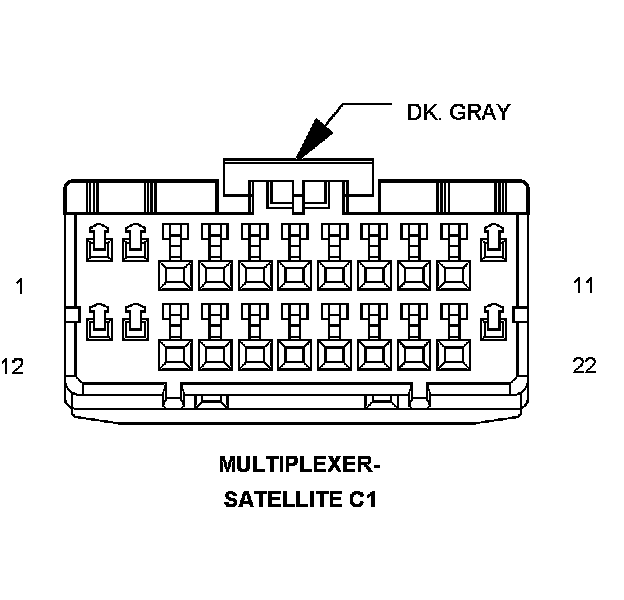

Connector:
Name : MULTIPLEXER-SATELLITE C1
Color : DK. GRAY
# of pins : 22




Pin Circuit Description
1 X417 22DG/WT AUDIO MUX LEFT
2 X416 22GY/WT AUDIO MUX RIGHT
3 X916 22GY/OR AUDIO RETURN
4 - -
5 D25 20WT/VT PCI BUS
6 X112 20DG/GY IGNITION RUN/ACC SIGNAL
7 X112 20DG/GY IGNITION RUN/ACC SIGNAL
8 X16 22DG/YL AUDIO SIGNAL RIGHT (+)
9 X607 20 SHIELD
10 X917 22DG AUDIO SIGNAL COMMON
11 X17 22DG/OR AUDIO SIGNAL LEFT (+)
12 - -
13 X480 20DG/LB AUDIO MUX ENABLE
14 - -
15 Z141 20BK/TN GROUND
16 E14 20OR/TN PANEL LAMPS DRIVER
17 X160 20GY/YL FUSED B(+)
18 D25 20WT/VT PCI BUS
19 Z141 20BK/TN GROUND
20 - -
21 X160 20GY/YL FUSED B(+)
22 - -

Component Location - 14




Component Location - 15




Component Location - 16

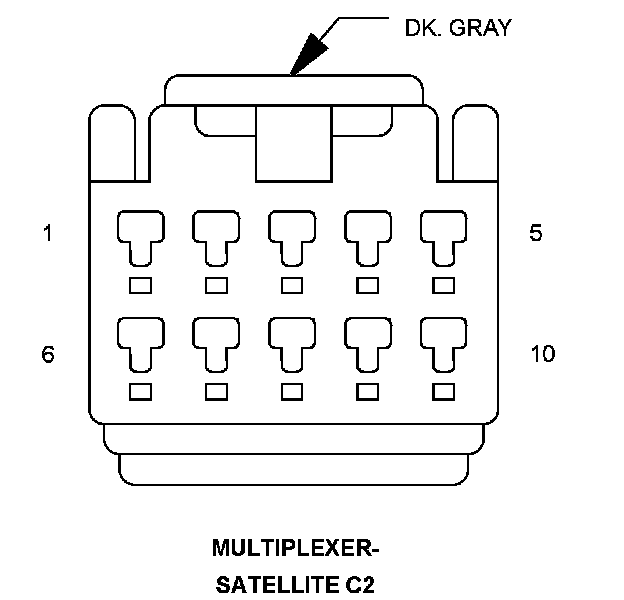

Connector:
Name : MULTIPLEXER-SATELLITE C2
Color : DK. GRAY
# of pins : 10




Pin Circuit Description
1 X40 22GY/WT AUDIO OUT RIGHT
2 X140 22GY/OR COMMON AUDIO
3 X207 22 SHIELD
4 D25 20WT/VT PCI BUS
5 X112 20DG/GY IGNITION RUN/ACC SIGNAL
6 X41 22DG/WT AUDIO OUT LEFT
7 - -
8 - -
9 E14 20OR/TN PANEL LAMPS DRIVER
10 - -

Component Location - 14




Component Location - 15




Component Location - 16
