Fan Module-Radiator Cooling No. 2

Component ID: 74

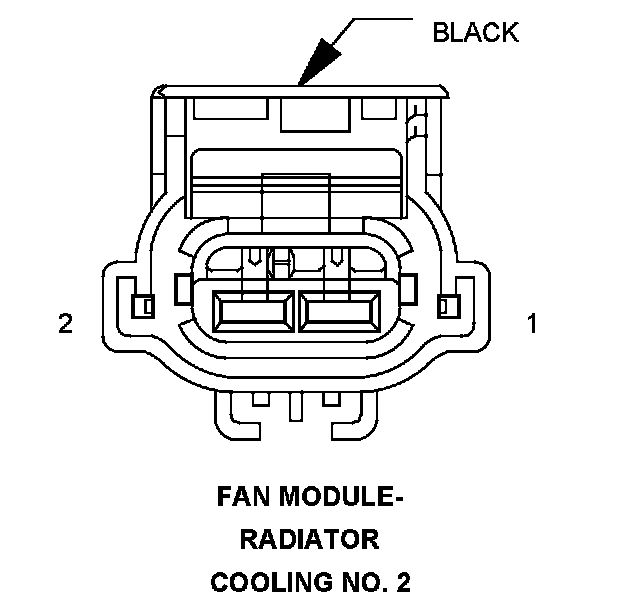

Component : FAN MODULE-RADIATOR COOLING NO. 2

Connector:
Name : FAN MODULE-RADIATOR COOLING NO. 2
Color : BLACK
# of pins : 2




Pin Circuit Description
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z223 12BK/DG GROUND

Component Location - 5
